USB 2.4 GHz BLE 4.0 Wireless Adapter Receiver – Amuse Tech Solutions

Description

Overview

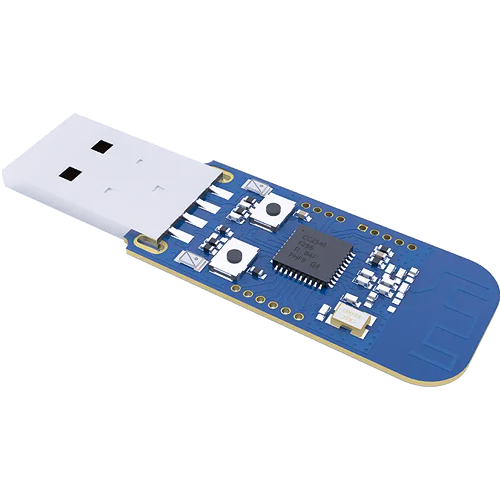

Amuse Tech Solutions USB 2.4 GHz BLE 4.0 Wireless Adapter Receiver is a compact Bluetooth module designed by Chengdu Ebyte, featuring a USB RF connector 0.067 in (1.27 mm) pin spacing and a high-performance PCB antenna. Supporting BLE 4.0, it operates in the 2.402 GHz to 2.480 GHz frequency range with a transmission power of 0 dBm and a range of up to 196.85 ft (60 m). This module offers reliable wireless connectivity in a small, efficient design, ideal for various Bluetooth applications.



Features

• USB interface for easy connectivity
• BLE 4.0 based communication module
• Compact, plug and play design
• Supports multiple operating systems
• High performance signal transmission



Applications

• Bluetooth testing and development
• IoT prototyping and integration
• Wireless device control
• Industrial communication solutions



Technical Specifications

Frequency	2.402 GHz to 2.480 GHz (ISM band)
Certification	CE, RoHS, ISO9001
Connector	USB
Supply Voltage	2.0 V to 3.6 V DC
Antenna Type	PCB
FLASH	256 KB
SRAM	8 KB
Core	8051 MCU
Power	4 dBm
Receiving Sensitivity	-94 dBm
Air Data Rate	1 Mbps
Transmitting Current	31.5 mA
Receiving Current	22 mA
Sleep Current	μA (microunits)
Working Temperature	-40 °F to 185 °F (-40 °C to 85 °C)
Storage Temperature	-40 °F to 257 °F (-40 °C to 125 °C)
Distance	196.85 ft (60 m) (in clear and open area, antenna height: 2.5 m)
Size	2.32 in x 0.71 in (59 mm x 18 mm)
