BLE WiFi USB Gateway for Tracking & Data Collection– Amuse Tech Solutions
Track assets, people, pets, and sensors with the BLE WiFi Gateway. Supports BLE 4.2, WiFi, AES encryption, OTA updates, and customizable firmware.
Description
Overview

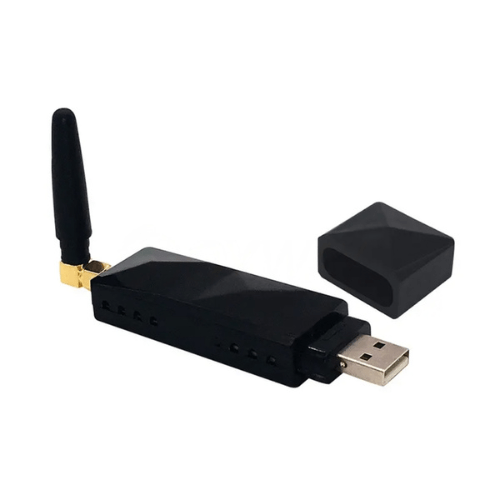

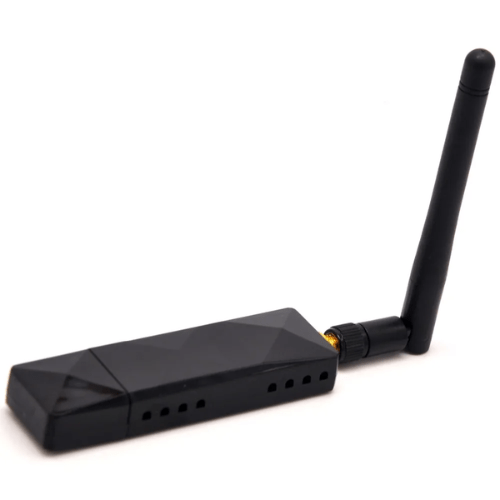

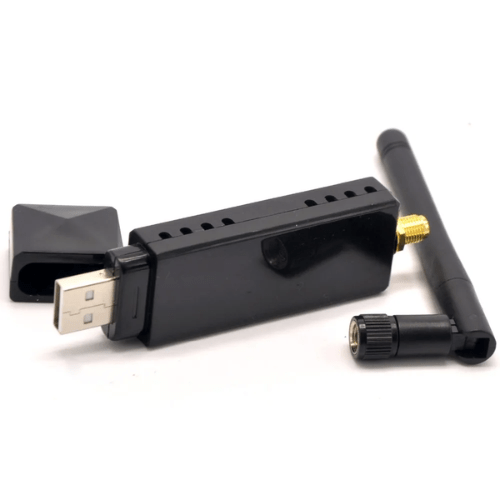

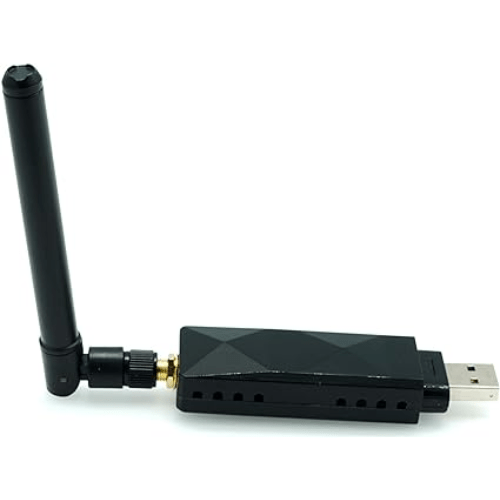

Amuse Tech Solutions’s BLE WiFi Smart Gateway is a Low Energy device designed to scan nearby BLE beacon advertising packages. Ideal for asset, people, and pet tracking, sensor data collection, and SOS signal detection.
Features
- Support customized firmware
- -91 dBm sensitivity
- 150 mA peak current
- 2.4G WIFI
- No battery, powered by USB port
- OTA and J-Link
Technical Specifications
| Color | Black Color |
| Chip | Nordic NRF 51802 QFAA |
| Battery | No battery, works when connected to 5 V 1 A adapter or Power bank |
| Voltage | 5 V 1 A |
| Sensitivity | -91 dBm sensitivity in low energy mode |
| Range | depending on the transmit power of the beacon device, the range can be to more than 1000 meters. |
| Product size | 3.54 in x 0.98 in x 0.59 in (90 mm x 25 mm x 15 mm Without antenna), 4.02 in x 0.98 in x 2.01 in (102 mm x 25 mm x 51 mm(with antenna) |
| Weight | 0.05 lb (25 g with antenna) 0.06 lb (30 g antenna +packing) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
