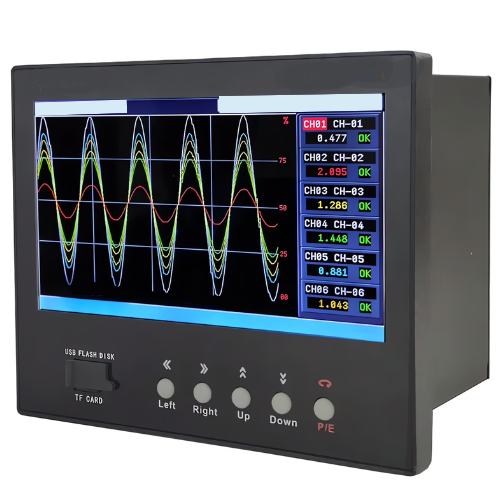

Touch Screen Industrial Controller for Efficient Monitoring – Amuse Tech Solutions
Touch Screen Industrial Controller, designed for efficient and intuitive control in industrial applications. Featuring a high-resolution touch screen.
Description
Features
- Customized Support: OEM, ODM, OBM
- Brand Name: Madin cos
- Model: MPR5000S
- Accuracy/Display: ±(0.2% FS +1) digit / 7″ TFT LCD, Touch Screen
- Opto-Electric Isolation: 400VAC (channels), 1000VAC (power/output-GND)
- Size: 7.09 × 5.91 × 1.97 in (18 × 15 × 5 cm)
- Universal Input: Thermocouple, RTD, mA, VDC, mV
- Input Channels: 2, 4, 6 (optional)
- Output: Max. 2 relays, NO, 3A
Technical Specifications
| Customized Support | OEM, ODM, OBM |
| Brand Name | Madin cos |
| Model Number | MPR5000S |
| High Accuracy/Display | ± (0.2% FS +1) digit / 7″ TFT Color LCD, Touch Screen |
| Opto-Electric Isolation | 400VAC isolation among channels; 1000VAC power/output-GND |
| Programmable Universal Input | Thermocouple, RTD, mA, VDC, mV |
| Input Channels (Optional) | 2, 4, 6 channels, optional |
| Output (Optional) | Max. 2 relay, NO, 3A |
| Match Function (Optional) | +, -, x, /, average, max, min |
| Flow Totalizer (Optional) | 1 to 6 channels, with temperature, pressure compensation |
| Communication | RS485 MODBUS-RTU |
| Wide Power Supply | 100-240VAC / 24VDC |
| Accuracy | ± (0.2% FS +1) digital |
| Display | 7″ Color LCD TFT, Touch Screen |
| Power Supply | 100-240VAC |
| Sampling | 1 second per 8 channels |
| Memory Capacity | Flexible memory capacity, up to 10 years with power-off protection |
| Memory Interval Time | 1, 2…3600 seconds, can be set flexibly in recorder |
| Screen Display | Digital, trend, barograph, circular chart |
| PC Software | Display data in digital/curve, print data, export to Excel for further analysis |
| Universal Input | Thermocouple, RTD, Analog, mV; programmable |
| Input Channels | 2, 4, 6, optional |
| Channels Isolation | 400VAC photoelectrical isolation |
| Sample Rate | 1 second / 8 channel |
| Relay Output | 3A, NO, max 2 relay output, configurable for channels |
| RS485 Communication | Standard Modbus-RTU protocol |
| Ethernet Communication | Standard Ethernet MODBUS-TCP/IP protocol |
| Flow Totalizer | With temperature, pressure compensation for channels |
| Math | +, -, x, /, max, min, average; linear math |
| Size | 7.09 x 5.91 x 1.97 in (18 x 15 x 5 cm) |
