IoT Gateway with Multi-Protocol Support, Robust Environmental Protection – Amuse Tech Solutions
Versatile IoT gateway with including Modbus and MQTT. Designed for harsh environments with robust protection and extensive connectivity options.
Description
Overview

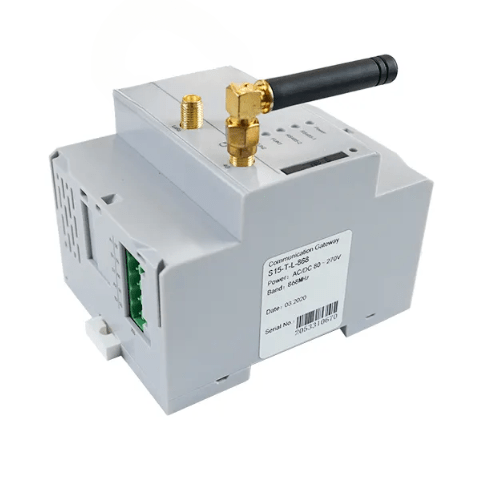

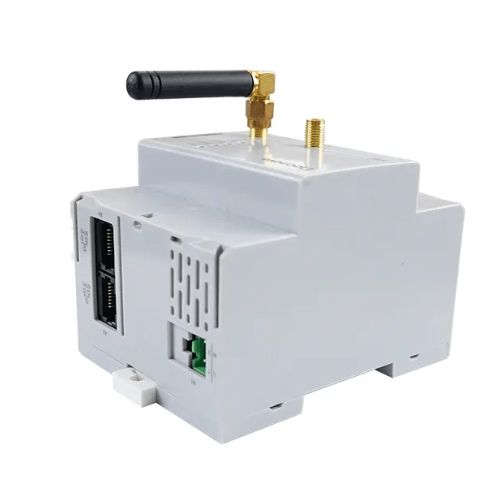

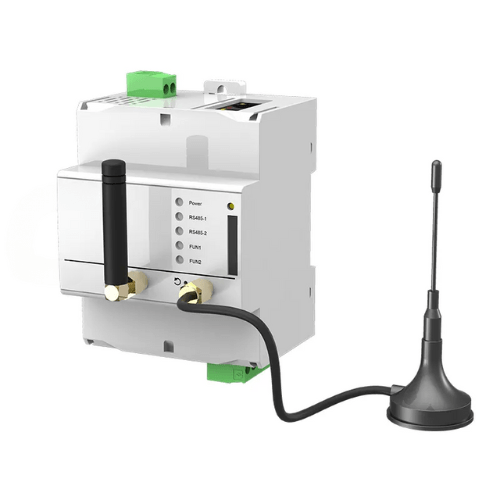

Amuse Tech Solutions IOT Gateway Internet Port is a small gateway device that can collect multiple protocol bus devices and upload data to a cloud platform or local HMI display. A complete set of Smart HMI tools supports the configuration of the device that hangs down and monitors its data or status.
Technical Specifications
| LED | 1 Rd. Running light ,2 Rd. RS485 lights,1 Rd. Ethernet light,1 Rd. wireless light |
| RS485 | 2 Rd |
| Ethernet | 2 Rd |
| Extension | 2 G,4 G, NB-IoT, LORA, WIFI |
| Working voltage | AC 220 V±20 V 50 Hz |
| Working temperature | -13 °F to 158 °F (-25 ℃ to +70 ℃) |
| Storage temperature | -40 °F to 185 °F (-40 ℃ to +85 ℃) |
| Relative humidity | ≤95% RH non-condensing |
| Work altitude |  ≤6561.68 ft (≤2000 m) |
| Protection level | IP 20 |
| Insulation | double insulation |
| Voltage withstands | 2.5 kV AC/1 min |
| Interface | Two RJ 45(100 M), electrostatic 6 KV |
| Standards | IEEE 802.3 |
| Communications agreements | Modbus TCP/IP, Modbus RTU, MQTT, etc. |
| Electrostatic discharge immunity | IEC 61000-4-2- III level |
| Radiofrequency electromagnetic radiation immunity | IEC 61000-4-3- III level |
| Immunity of electric fast transient pulse group | IEC 61000-4-4- IV level |
| Impact (surge) immunity | IEC 61000-4-5- IV level |
