ZigBee Universal Gateway with Z2M Connection & Power Ethernet – Amuse Tech Solutions

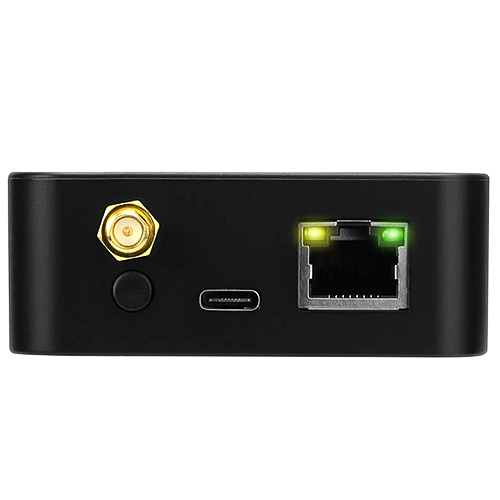

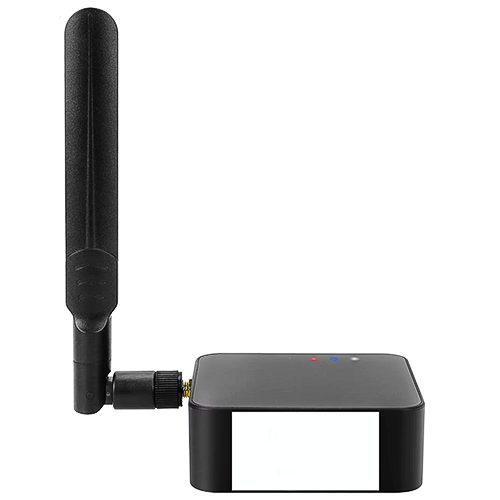

Plug & play Zigbee device supporting up to 300 devices with PoE or USB-C power options, open-source firmware, and easy mode switching. Compact design with LED indicators and firmware updates over LAN or USB.
Description
Features
- Supports up to 300 zigbee devices
- PoE or USB-C for power options
- Compact, plug & play design
- Firmware updates via LAN or USB
- Change modes with a button press
- Pre-flashed and open-source firmware
- LED indicators for power and connection
- Zigbee over LAN, USB, Wi-Fi
Technical Specifications
| Power Options | USB-C Type or PoE 802.3af |
| Connectivity | Zigbee over LAN, USB, Wi-Fi |
| Main Chips | ESP32, LAN8720, CH340C |
| Amplifier | CC2652P2 with +20dB (New CC2652P7 from hardware v0.2+) |
| Device Support | Up to 300 zigbee devices |
| Operating Modes | Coordinator and router |
| LED Indicators | BLUE: Power, RED: Mode, YELLOW: Z2M connection |
| DIY Pinouts | Available |
| Firmware Updates | Over LAN, Internet, or USB |
| Compact Design | Plug & Play, Pre-flashed |
| Dimensions | 2.87in X 2.83in X 1.06in (73mm X 72mm X 27mm) |
| Weight | 0.77lb (0.35kg) |
