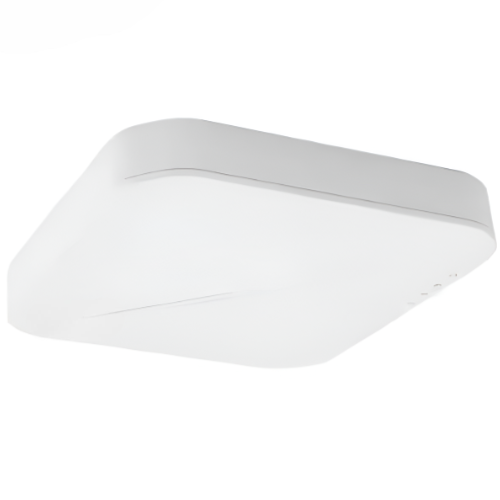

Zigbee Positioning Gateway with–1G RAM and SIM Card – Amuse Tech Solutions
Powerful device with USB Type-C, Linux OS, 1GB RAM, Wi-Fi, BLE 5.2, Zigbee, Z-Wave, and precise positioning accuracy. Ideal for smart installations.
Description
Technical Specifications
| Power Supply | USB type-C 5V or 2A |
| Installation Method | Ceiling |
| OS | Linux |
| RAM | DDR4 1GB |
| eMMC | 8GB |
| USB | USB 2.0 |
| SIM Card | Micro SIM card |
| Positioning Accuracy | 0.3-1M |
| IP Rating | IP53 |
| Current | 350mA at 5V |
| PCI Express | Mini-PCIe socket |
| Debug | 1 x serial console via UART to USB bridge, Micro-U connector |
| Serial | 1 x RS232 and 1 x RS485 (2 wires) |
| Expansion Connectors | 1 x SPI, 2 x UART, 12C, 4 x GPIO |
| Wireless Protocols | Wi-Fi, BLE 5.2, Zigbee, Z-Wave, LTE |
| CPU | PX30 Quad-core CortexA35 |
| Switch | ON or OFF |
| Operating Humidity | 10%RH -90%RH |
| Working Temperature | 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | 104°F to 185°F (40°C to 85°C) |
