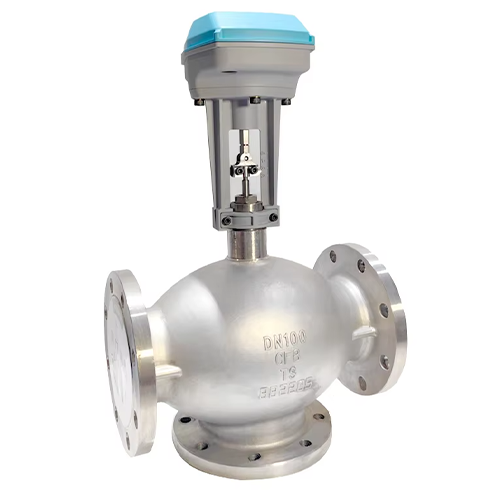

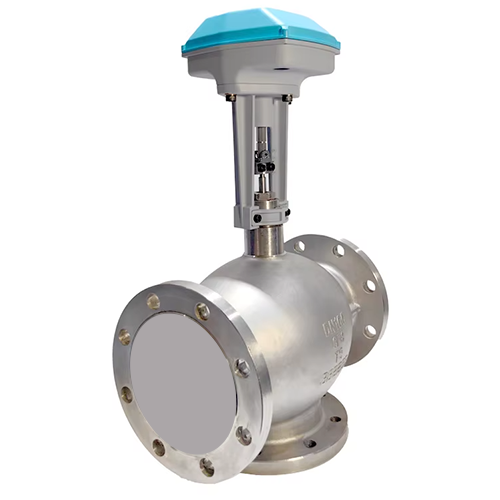

Stainless Steel Motorized Flow Control Valve with Actuator – Amuse Tech Solutions
Battery-powered NB-IoT motorized valve with IP68 rating, precise flow control, and wide temperature range. Ideal for remote fluid regulation.
Description
Technical Specifications
| Port Size | DN15 to DN200 |
| Structure | Regulating |
| Power | Electric |
| Customized Support | OEM, ODM, OBMÂ |
| Temperature of Media | High Temperature, Low Temperature, Medium Temperature |
| Media | Water, Oil, Stream |
| Usage | Control Water, Steam Flow |
| Material | Stainless Steel |
| Working Pressure | PN16 to PN25Â |
| Power Supply | External AC 24 VÂ |
| Regulation Mode | Up and Down Adjustment |
| Communication Mode | Modbus, GPRS, NB-IoT, ModBUS-TCP, LoRa (Optional)Â |
| Control Mode | Switching, Three-digit Floating Point, Analog Adjustment 0 V to 10 V, 4 mA to 20 mAÂ |
| Voltage | AC 220 V, AC 110 V, DC 12 V, DC 24 VÂ |
| Protection Grade | IP67, IP68, IP54Â |
| Standard or Nonstandard | Standard |
| Valve Body Material | Stainless Steel (Ductile Iron, Cast Steel)Â |
| Opening Adjustment Range | 0% to 100%Â |
| Working Temperature | -4 °F to 302 °F (-20 °C to 150 °C) |
