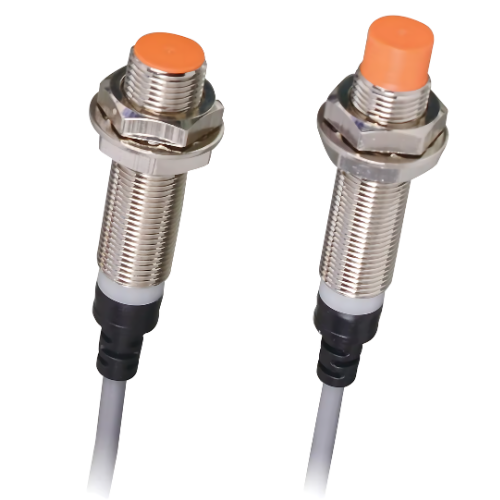

Proximity Sensor with Flush / Non-Flush Mount and IP67 Rated Long Use Life Cycle – Amuse Tech Solutions
Mountable cylindrical proximity sensor. 200 mA output, surge & reverse polarity protection. IP67 rated, -25 ℃ to +70 ℃ operating temp.
Description
Features
- Inside surge protection, reverse polarity protection
- Long use-life cycle and high reliability, easy install, economic price
- Red LED status indication, easy to confirm work situation
- Protection structure IP67(IEC standard)
- Replaceable for limit switches
- Exclusively designed IC for improving anti-jamming capability
Technical Specifications
| Mounting Type | Flush or non-flush |
| Features | Inside surge & reverse polarity protection |
| Output Max. | 200 mA |
| Description | Cylindrical Proximity Sensor |
| Hysteresis | Max. 10 % of sensing distance |
| Insulation Resistance | Min. 50 MΩ at 500 VDC megger |
| Dielectric Strength | 1500 V AC 50 Hz or 60 Hz for 1 minute |
| Indicator | Operation indicator Red LED |
| Ambient Humidity | 35 % RH to 95 % RH (With no condensation) |
| Protection | IP67 |
| Ambient Temperature | -77 ºF to 158 ºF (-25℃ to 70 ℃) With no icing |
| Storage Temperature
|
86 ºF to 176 ºF (-30 ℃ to +80 ℃) (With no icing) |
