Optical Time Domain Reflectometer with Compact Single Mode Support – Amuse Tech Solutions
Discover a high-performance optical time-domain reflectometer, ensuring accurate diagnostics and efficient maintenance for single-mode fiber networks.
Description
Features
- High dynamic range measurement
- Ultra-low event dead zone
- Dual wavelength operation capability
- Large sampling point capacity
- Precise fiber network diagnostics
- Compact single-mode support
- User-friendly interface design
- Reliable connector compatibility
- Efficient network maintenance tool
- Advanced troubleshooting accuracy
Technical Specifications
| OTDR Types | Chinese OTDR, USA OTDR, Canada OTDR, Japanese OTDR, CWDM OTDR, DWDM OTDR |
| Fusion Splicers | Chinese Fusion Splicer, Japanese Fusion Splicer, Korean Fusion Splicer |
| Test Instruments | Optical Power Meters, Optical Laser Sources, Visual Fault Locators, PON Power Meters, Fiber Optical Multimeter, Optical Attenuator, Optical Talk Sets, Cable Fault Locators, Fiber Identifier |
| Fiber Tools | Fiber Cleaver, Fiber Stripper, Cable Sheath Slitter, Kevlar Scissors, Fiber Cleaning Tools, Loose Tube Stripping Tool, Fiber Optic Termination Kit, Bare Fiber Connector, V-groove, Launch Cable, FTTH Tools Kit, Thermal Stripper |
| Wireless Test Equipment | Sitemaster, Spectrum Analyzer |
| Data Test Instruments | E1 Error Bit Tester, Ethernet Tester |
| Battery Tester | Battery Internal Resistance Tester |
| Accessories | Patch Cord, Fiber Adapter, Fiber Cable, Fusion Splicer Battery, OTDR Battery, Electrode, Blade, Power Changer |

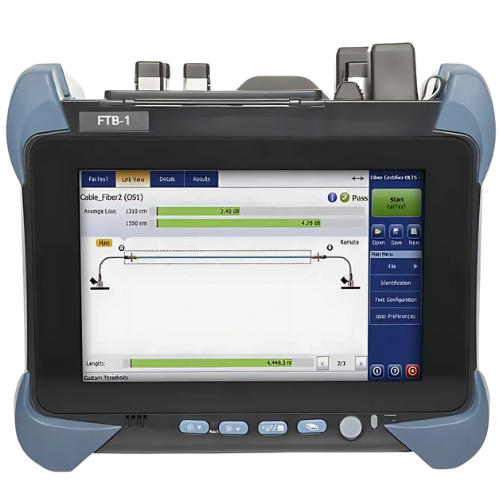

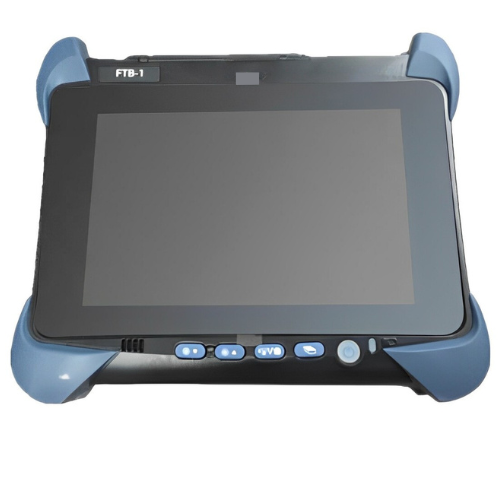

| OTDR Model | EXFO-FTB-1v2-720C-SM1 |
| Wavelength (nm) | 1310 ± 20 / 1550 ± 20 (optional: 850 ± 20 / 1300 ± 20 / 1625 ± 10) |
| SM Live-Port Built-in Filter (Option) | 1625 nm: highpass > 1595 nm, isolation > 50 dB from 1270 nm to 1585 nm |
| Dynamic Range (dB) | 36 / 35 (options: 27, 29, 35) |
| Event Dead Zone (m) | Multimode: 0.5, Single mode: 0.7 |
| Attenuation Dead Zone (m) | Single mode: 3.0 |
| PON Dead Zone (m) | 35 |
| Distance Range (km) | Multimode: 0.1 to 40, Single mode: 0.1 to 260 |
| Pulse Width (ns) | Multimode: 25 to 1000, Single mode: 3 to 20,000 |
| Launch Conditions | FC-connectorized |
| Linearity (dB/dB) | ± 0.03 |
| Loss Threshold (dB) | 0.01 |
| Distance Resolution (m) | Multimode: 0.04 to 5, Single mode: 0.1 to 5 |
| Sampling Resolution (m) | Up to 256,000 |
| Distance Uncertainty (m) | ± (0.75 m + 0.0025 % x distance + sampling resolution) |
| Measurement Time | User-defined (maximum: 60 minutes) |
| Reflectance Accuracy (dB) | ± 2 |
| Typical Real-Time Refresh (Hz) | 4 |
| Display | Touch screen, color, 800 x 480 TFT, 178 mm (7 in) |
| Interfaces | Two USB 2.0 ports, RJ-45 LAN 10/100/1000 Mbit/s, Fiber inspection probe connector port (video), Built-in Bluetooth and Wi-Fi (optional) |
| Storage | 8 GB internal memory (flash); 16 GB internal memory (optional) |
| Batteries | Rechargeable lithium-ion batteries, 8 hours operation (as per Telcordia* Bell core) |
| Power Supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output 24 VDC, 90 W |
| Computer | Intel ATOM processor, Windows Embedded Standard operating system |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Relative Humidity | 0 % to 95 % non-condensing |
| Size (H x W x D) | 7.48 in x 9.92 in x 2.60 in (19 cm x 25.2 cm x 6.6 cm) |
| Weight (with Battery) | 3.3 lb (1.5 kg) |
