Optical Fiber Network Length Breakpoint with Compact Design – Amuse Tech Solutions

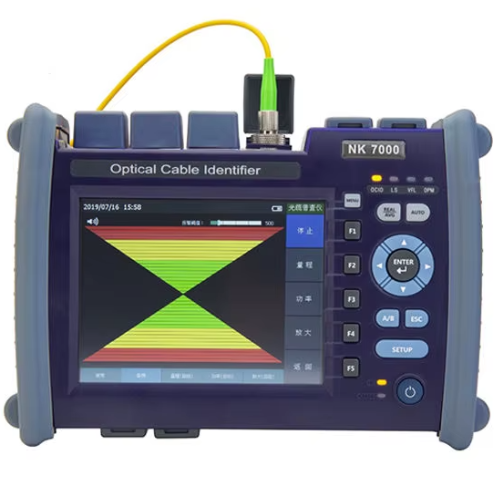

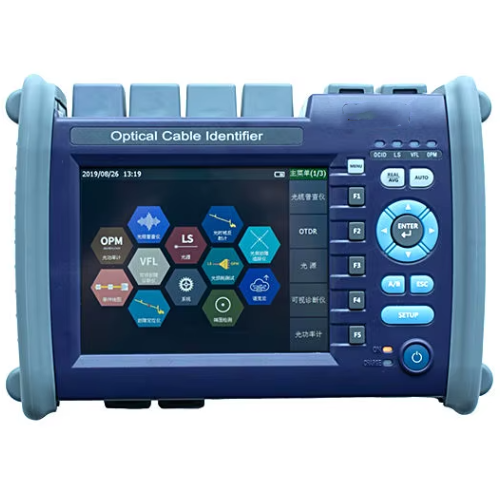

Portable OTDR tester for fiber network length, breakpoint, and loss analysis, featuring a touch screen, durable design, and Wi-Fi connectivity.
Description
Features
- Compact design
- Accurate network diagnostics
- 6-inch color display
- Class II laser safety
- User-friendly touchscreen interface
- 1550nm wavelength range
- Efficient fiber troubleshooting
- Portable and lightweight
- Versatile testing capabilities
- Fast and reliable results
Technical Specifications
| Use | Home Optical Network Terminal |
| Network | Wi-Fi |
| Color | Blue & Grey |
| Small Orders | Accepted |
| Display | 5.6-in (14.2 cm) color LCD + touch screen |
| Wavelength | 1550 nm ± 20 nm |
| Laser Safety Level | Class II |
| Connector Type | FC/UPC (Interchangeable SC, ST) |
| Max Dynamic Range (dB) | 35/33/38/36, 42/40, 45/43, 32/30/30, 37/35, 32/30/30, 26/28 |
| Pulse Width | 3ns, 5ns, 10ns, 30ns, 50ns, 80ns, 160ns, 320ns, 500ns, 1000ns, 3000ns, 5000ns, 8000ns, 10000ns, 20000ns |
| Ranging Accuracy | ± (0.75m + Sample interval + 0.005% X Test distance) |
| Loss Accuracy | ± 0.05dB/dB |
| Sample Points | 16k to 256k |
| Reflection Accuracy | ± 3dB |
| File Format | SOR Standard File Format |
| Loss Analysis | 4-point method, 5-point method |
| Refresh Rate | 3Hz (Typical) |
| Data Storage | Internal: 200,000 curves; External: 4 GB |
| Data Interface | USB, Mini-USB, 10M/100M Ethernet Port |
| Wavelength Range (OPM) | 800nm to 1700nm |
| Connector (OPM) | Universal FC/SC/ST |
| Test Scope | -50 dBm to +26 dBm |
| Calibration Wavelength | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm |
| Output Power | ≥ -5 dBm |
| Stability | CW, ±0.5 dB/15min (after 15 minutes of preheating) |
| Output Power (VFL) | ≥ 10mW |
| Mode (VFL) | CW/1Hz/2Hz |
| Display (Additional) | 7 in (17.8 cm) color LCD + touch screen |
| Power Supply | AC/DC adapter: Input 100V to 19V, 1.5A, Lithium battery: 7.4V, 5200mAh |
| Relative Humidity | 0% to 95%, non-condensing |
| Test Range | 1640.42 ft (500 m), 0.621 mi (1 km), 1.243 mi (2 km), 2.485 mi (4 km), 4.971 mi (8 km), 9.942 mi (16 km), 19.884 mi (32 km), 39.768 mi (64 km), 79.537 mi (128 km), 159.075 mi (256 km) |
| Event Blind Zone | 2.625 ft (0.8 m) |
| ATT Blind Zone | 19.685 ft (6 m) |
| Sample Resolution | 0.164 ft to 52.493 ft (0.05 m to 16 m) |
| Working Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to +70 °C) |
| Size | 8.937 in × 6.299 in × 2.756 in (22.7 cm × 16.0 cm × 7.0 cm) |
| Weight | 2.65 lb (1.2 kg) |
