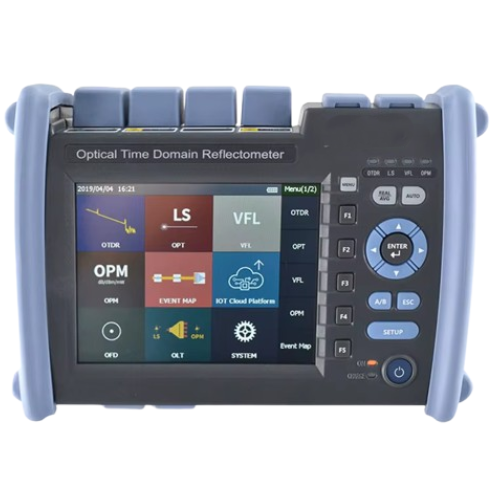

Portable and intelligent OTDR for fiber testing, offering advanced features for measuring length, loss, and connection quality in diverse application.
Description
Features
- Wide dynamic range
- Multi-mode and single mode
- High measurement accuracy
- Large 5.8-inch display
- Long testing range
- Lightweight and portable
- Touchscreen interface operation
- Supports multiple wavelengths
- Ideal for FTTH testing
- Compact and durable design
Technical Specifications
| Use | FTTH |
| Color | Blue |
| Wavelength | 1310/1550/1650nm |
| Dynamic Range | 37/35/35dB |
| Display | 5.8-inch color LCD with touch screen |
| Fiber Type | SM/MM |
| Ranging Accuracy | ± (0.75m + Sampling interval + 0.005% x Test distance) |
| Test Pulse Width | 5, 10, 30, 100, 275, 500, 1000, 5000, 10000, 20000ns |
| Loss Threshold | 0.01dB |
| Sampling Points | 128k |
| Linearity | 0.05dB/dB |
| Loss Resolution | 0.001dB |
| Waveform Storage Capacity | ≥1000 |
| External Interface | USB, Min-USB, RJ-45 |
| Optical Output Interface | FC |
| VFL | 650nm±10nm, ≥5mW |
| Optical Power Meter | Wavelength range: 1200+26dBm |
| Stable Light Source Function | 1310/1550nm: -5dBm CW(270Hz, 1K270Hz, 2K270Hz) |
| Battery | 7.4V/5000mAh Li-ion battery, Max 12 hours |
| Power Supply | 19V, 1.31A |
| Relative Humidity | 0 % to 95% No condensation |
| Event Dead Zone | 2.62 ft (0.8m) |
| Attenuation Dead Zone | 19.69 ft (6m) |
| Highest Range Resolution | 0.164 ft (0.05m) |
| Test Range | 0.2485 mi ( 0.4 km), 0.4971 mi (0.8 km), 0.9939 mi (1.6 km), 1.9944 mi (3.2 km), 3.9769 mi (6.4 km), 9.9419 mi (16 km), 19.908 mi (32 km), 39.816 mi (64 km), 79.632 mi (128 km), 158.885 mi (256 km), 318.77 mi( 512 km) |
| Size | 8.46 in x 5.91 in x 2.76 in (21.5 cm x 15 cm x 7 cm) |
| Operating Temperature | 23°F to 122°F (-5 °C +50°C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to+70 °C) |
| Dimension | 894,173.23 in (2,271,299.3 cm) |
| Weight | 6.61 lb(3 kg) |
