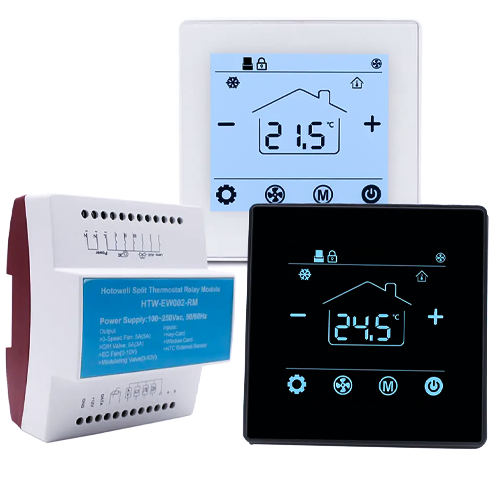

Hotel fan coils with Modbus communication for efficient temperature control. Durable and reliable solution for hotel HVAC systems.
Description
Features
- Touch Screen Display
- 60mm Standard Installation Hole Distance
- Wide, blue backlit LCD
- Front panel built in pushbuttons
- Ront panel built in temperature sensor
- Change Over to HEAT or COOL
- Configurable for 2 pipe or 4 pipe systems
- Selectable temperature units (ºC or ºF)
- Configurable max or min or economy temperature setpoints
- Keycard switch contact occupancy monitoring for energy saving
- Configurable keycard switch input: keycard switch/lighting
- Modulating Valve Output 0-10V or 2-10V configurable
- ON or Off 3 speeds or 1 speed configurable
- EC fan Control with starting or max. voltage configurable
- 3-wire between display-relay part up to 50meter, no data loss
- Speed 1 configurable as blocked or unblocked on zero demand
- Economy mode Heat or Cool temperature setpoint Heat orCool dead band
- Delayed switching to Economy when card is removed
- Automatic device startup after loss of power
- Configurable NO or NC valve outputs
- Configurable anti-humidity frequency
- Noise-Free application
Technical Specifications
| Power Supply | 100 to 250 VAC |
| Frequency | 50 or 60Hz |
| Front Panel Built in Pushbuttons | Mode/+T/-T or Fan speed or On-Off |
| Configurable Fan Coil | 3 speeds or 1 speed |
| Configurable Anti-Humidity Frequency | 10/30,5/30,5/60 |
| Front Panel Size | 2.56 in × 2.32 in (65 mm x 59 mm) |
| Maximum Rated Current | 110mA |
| Operating Temperature | 32℉ to 104℉ (0℃ to +50℃ ) |
| Storage Temperature |  -4o℉ to +185℉(-20℃ to +85℃) |
| Usage | Hotel air conditioning |
| Single Package Size | 9.84 in × 5.91 in × 5.91 in(25 cm X15 cm X15 cm) |
| Single Gross Weight | 2.20 lbs. (1.000 kg) |
