LoRaWAN IO Controller With Multiple Interfaces – Amuse Tech Solutions
Amuse Tech Solutions’s LoRaWAN I/O Controller offers long-range wireless connectivity with analog, digital, and relay interfaces. It ensures low power consumption and high interference immunity for smart metering and automation.
Description
Overview

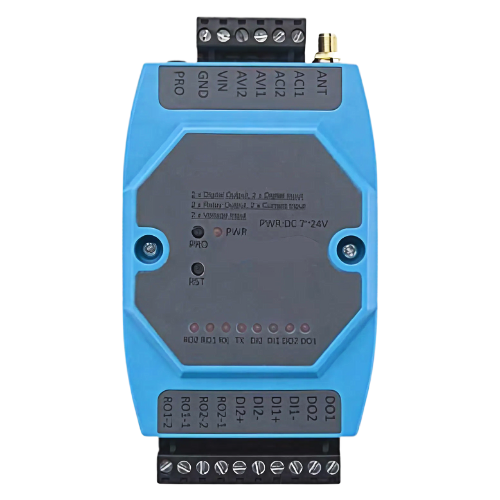

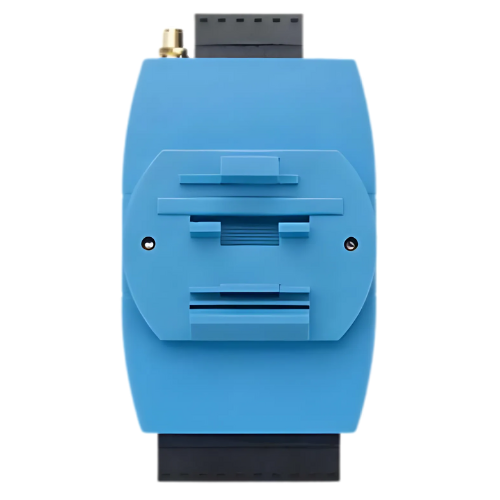

Amuse Tech Solutions’s LoRaWAN IO controller with multiple interfaces is a long-range LoRaWAN I/O solution designed for seamless installation and data transmission. It features multiple I/O interfaces, including analog current and voltage inputs, relay outputs, and digital I/O. Using LoRa wireless technology, it ensures ultra-long-range communication with high interference immunity and low power consumption. Ideal for professional wireless sensor networks, it supports applications like irrigation, smart metering, and building automation.
Features
- LoRa wireless chip
- AT Commands to change parameters
- Optional LoRa protocol
Technical Specifications
| Chipset | SX1276/78 LoRa Wireless Chip |
| Protocol | LoRaWAN Class A and Class C |
| Frequency | CN 470 MHz or EU 433 MHz or KR 920 MHz or US 915 MHz or EU 868 MHz or AS 923 MHz or AU 915 MHz |
| Digital Inputs | 2 x bi-directional digital input |
| Digital Outputs | 2 x digital output |
| Relay Outputs | 2 x relay output (5 A at AC 250 V or DC 30 V) |
| Analog Inputs | 2 x 0 mA to 20 mA (resolution: 0.01 mA), 2 x 0 V to 30 V (resolution: 0.01 mA) |
| Power Input | 0 V to 24 V |
| Device Weight | 6.0 oz (170 g) |
| Dimensions | 0.57 in x 0.3 in x 0.2 in (14.5 mm x 8 mm x 5 mm) |
