LoRaWAN Ethernet Port Wireless Wi-Fi Module with RS485 100 MW – Amuse Tech Solutions
LoRa WAN module with Ethernet port, wireless Wi-Fi, and RS485 support, delivering 100 MW power for extended communication range.
Description
Overview

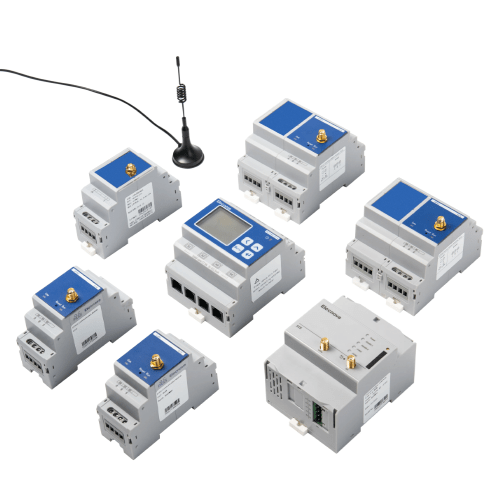

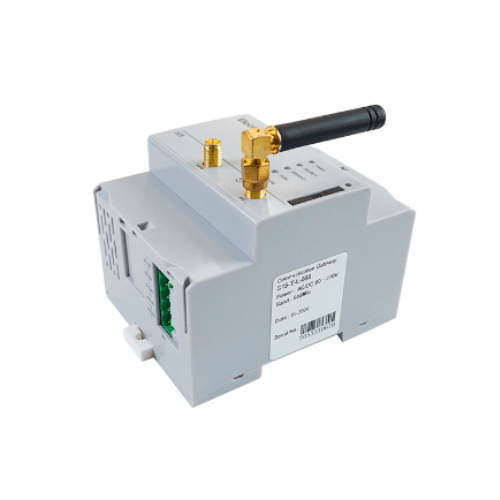

Amuse Tech Solutions LoRa WAN ethernet port wireless Wi-Fi module is a small gateway device that can collect multiple protocol bus devices and upload data to cloud platform or local HMI display. A complete set of Smart HMI tools supports the configuration of the device that hangs down and monitors its data or status.
Features
- Power supply by itself
- Launch frequency is 100 MW
- Communication rat is Max 115200 bps (default 9600 bps)
- Available meter are 1 to 32 pcs power meters
Technical Specifications
| LED | 1 Rd. running light, 2 Rd. RS 485 lights ,1 Rd. Ethernet light, 1 Rd. wireless light |
| RS485 | 2 Rd. |
| Ethernet | 2 Rd. |
| Extension | 2G, 4G, NB-IoT, LORA, WIFI |
| Protection level | IP 20 |
| Insulation | double insulation |
| Voltage withstands | 2.5 k V AC 1 min |
| Interface | Two RJ 45 (100 M), electrostatic 6 KV |
| Communications agreements | Modbus TCP or IP, Modbus RTU, MQTT etc. |
| Electrostatic discharge immunity | IEC 61000-4-2- III level |
| Radiofrequency electromagnetic radiation immunity | IEC 61000-4-3- III level |
| Immunity of electric fast transient pulse group | IEC 61000-4-4- IV level |
| Impact (surge) immunity | IEC 61000-4-5- IV level |
| Working voltage | AC 220 V ±20 V 50 Hz |
| Relative humidity | ≤95% RH non condensing |
| Work altitude | ≤6561.7 ft (≤2000 m) |
| Working temperature | -13 °F to 158 °F (-25 °C to 70 ℃) |
| Storage temperature | -40 °F to 185 °F (-40 °C to 85 ℃) |
