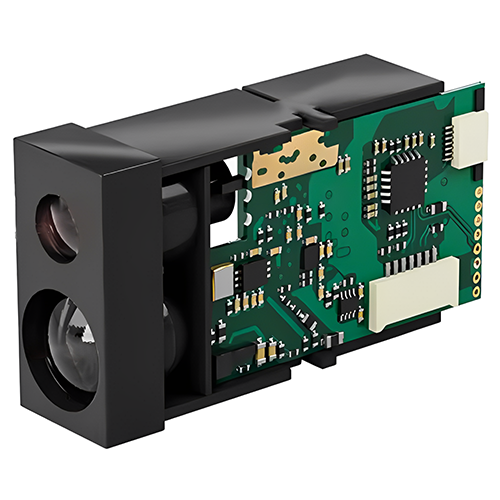

Laser Range Sensor Smallest Distance Lidar Laser Module – Amuse Tech Solutions
Discover the Laser Range Sensorr, 50m range, the smallest and most efficient Lidar module for precise distance measurement in compact applications.
Description
Technical Specifications
| Dimension | 1.89″ x 1.02″ x 0.51″ In |
| Material | ABS and PCB |
| Frequency | 3 Hzto 550nm, Visible red |
| Laser Type | 510 to 550 nm, Visible red |
| Laser Class | Class II (IEC 60825 to 1:2014), < 1 mw |
| Measurement Method | Phase shift principle |
| Communication Level | TTL (3.3 V) |
| Input Voltage | DC 2.5 V to 3.6 Vto 104oF (0° to 40°C) |
| Working Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | -13 °F to 140 °F (-25 ℃ to 60 ℃) |
| Measurement Range Support | 1.12 to 2.362.2 |
| Dimension | 1.89 in x 1.02 in x 0.51 in (48 mm X 26 mm X 13 mm) |
| Weight | 0.317 oz (9 g) |
