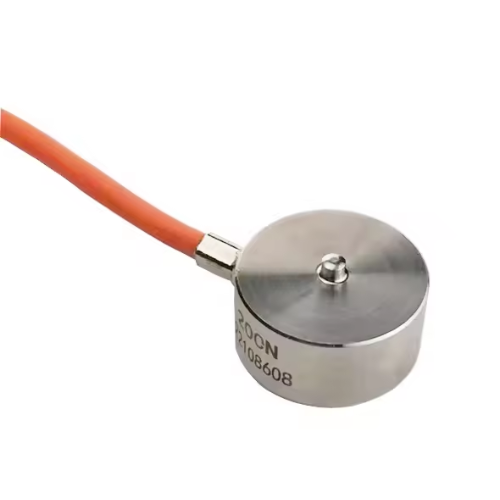

High Accuracy Type Force Sensor Miniature Compression Load Cell Force Sensor – Amuse Tech Solutions
The high accuracy button type force sensor miniature compression load cell force sensor offers a combination of precision.
Description
Technical Specifications
| Accuracy | 0.5 % FS |
| Sensitivity | 1.0 mV/V to 1.5 mV/V |
| Non-linearity | 0.3 % |
| Relative creep over 30 min | 0.05 % |
| Temperature influence on sensitivity | 0.05 % FS / 18 °F (0.05 % FS / 10 °C) |
| Temperature influence on the zero signal | 0.05 % FS / 18 °F (0.05 % FS / 10 °C) |
| Zero output | ± 1.0 % FS |
| Input resistance | 350 ± 20 Ω |
| Output resistance | 350 ± 3 Ω |
| Insulation resistance | > 5000 MΩ |
| Reference excitation voltage | 10 V DC |
| Limit force | 150 % |
| Breaking force | > 300 % |
| Material | Stainless Steel |
| Mode of connection | Input+: Red, Input-: Black, Output+: Green, Output-: White |
| Level of protection | IP66 |
| Operating temperature range | -4 °F to 149 °F (-20 °C to 65 °C) |
| Nominal (rated) temperature range | 14 °F to 113 °F (-10 °C to 45 °C) |
| Reference temperature | 73.4 °F (23 °C) |
| Mass | 21.16 oz (600 g) |
