BLE Gateway with GPS Tracking for Assets and Vehicles – Amuse Tech Solutions

Description

Overview

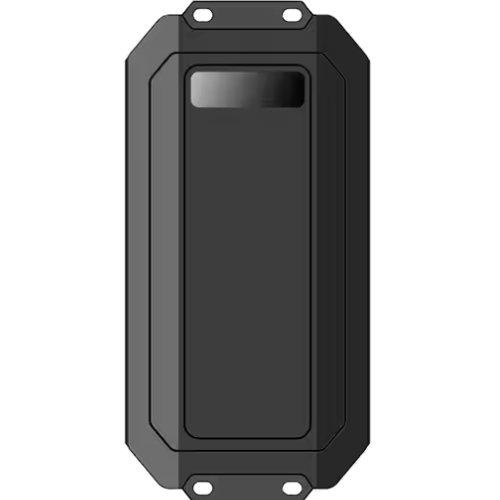

The BLE Beacon and Gateway Asset Tracking Device features GSM, GPS, and Beidou positioning with a strong magnetic mount. It offers a 20000mAh battery for 96+ hours of operation, IP67 waterproofing, and a compact design (154x82x30mm, 350g). Equipped with Quectel BG95 and Bluetooth 5.0, it provides real-time tracking via cloud, apps, or SMS. Ideal for asset and vehicle tracking, it ensures reliability in diverse environments.



Features

• GPS tracking with 16.4 ft to 32.8 ft (5 m to 10 m) accuracy
• Bluetooth 5.0 and Wi-Fi 4.0 connectivity
• 20000 mAh lithium-ion battery with ultra-low discharge
• Durable IP 67 waterproof design
• CAT M1 or NB-IoT cellular network support
• Internal high-gain GSM and GPS antennas
• Motion sensor for enhanced tracking
• Embedded TCP or IP stack for communication protocols
• 2 status LEDs for GPS and cellular indicators



Applications

• IoT Device Management
• Indoor Navigation Systems
• Asset and Personnel Tracking
• Smart Home and Office Automation



Technical Specifications

Connectivity	Bluetooth 5.0, Wi-Fi 4.0, CAT M1orNB-IoT, GSM
Position Accuracy	16.4 ft to 32.8 ft (5 m to 10 m)
Sensitivity	GPS: -147 dBm, GSM: -107 dBm (850 MHz or 900 MHz), -106 dBm (1800 MHz or 1900 MHz)
Processor	STM32G070CB
Battery Capacity	20000 mAh (Disposable lithium-ion, ultra-low discharge)
Power Consumption	< 100 mA (average), < 15 µA (power save mode)
Antennas	Internal high-gain GSM and GPS antennas
Indicators	2 LEDs: Green (GPS), Red (Cellular)
Ingress Protection	IP67
Operating Temperature	-4 °F to 158 °F (-20 °C to 70 °C)
Humidity	5% to 95% (non-condensing)
Dimensions	6.06 in x 3.23 in x 1.18 in (154 mm x 82 mm x 30 mm)
Weight	12.35 oz (350 ± 5 g)
