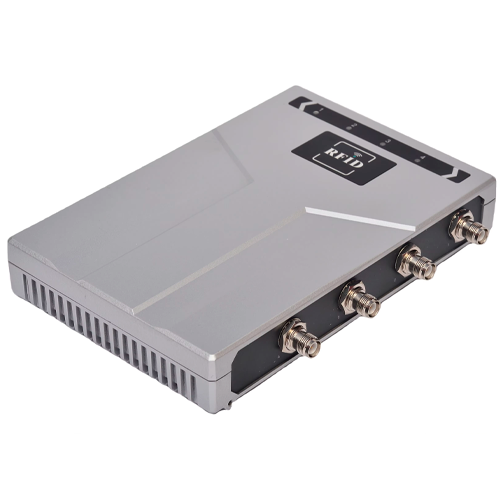

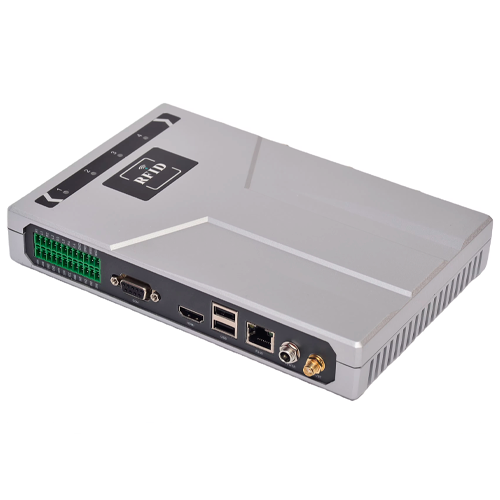

Asset Management UHF RFID Reader 840MHz to 960MHz – Amuse Tech Solutions
High-performance UHF RFID reader for asset management. Features adjustable 33 dBm port output power, ISO 18000-6C support.
Description
Technical Specifications
| Characteristics | Â Value |
| Frequency | 840 MHz to 960 MHz |
| Housing Material | Aluminium |
| Protection Level | IP55 |
| Communication Interface | Ethernet, RS-232, RS-485, USB, Wi-Fi, Bluetooth, Wiegand |
| Antenna Port | Eight-way TNC antenna reverse polarity interface |
| Working Mode | Fixed frequency or frequency hopping optional |
| RF Output Power (port) | 33 dBm ± 1 dB (MAX) |
| Output Power Adjustment | 1Â dBÂ step |
| Channel Occupied Bandwidth | <200 kHz |
| Frequency Stability | Frequency stability |
| Size | 8.4 in x 5.68 in x 1.43 in (21.5 cm × 14.45 cm × 3.65 cm) |
| Weight | 2.138484 lbs. (0.970 kg) |
| Operating Temperature | -4° F to 176° F (-20° C to 80° C) |
| Storage Temperature | -40° F to 203° F (-40° C to 95° C) |
