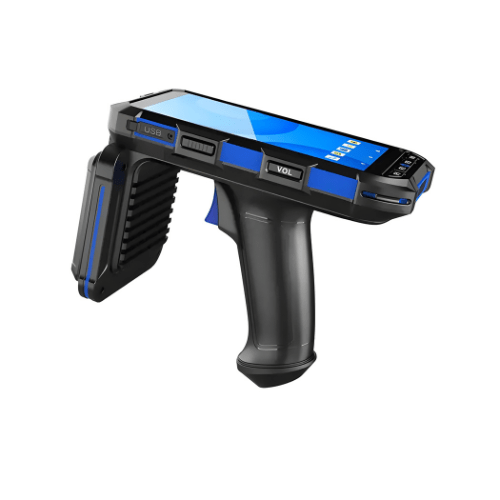

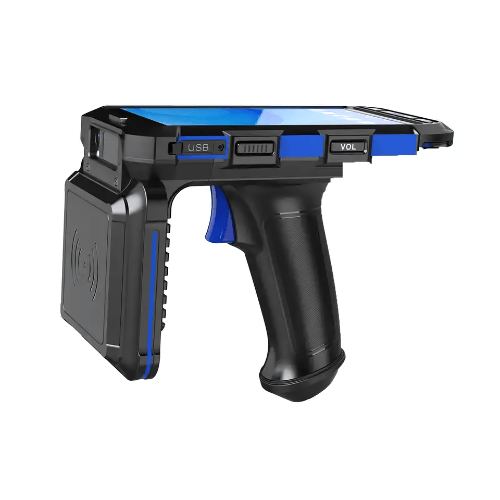

Amuse Tech Solutions UHF RFID Handheld Terminal Reader – Operating System of Android 10.0
Get our UHF RFID Handheld Terminal with 5.5 in (13.9 cm) touchscreen, Android 10.0 OS, robust design, and versatile connectivity. Order yours now.
Description
Technical Specifications
| Display | Tough 5.5 in (13.9 cm) TFT to LCD (720 x 1440) touchscreen with backlight |
| Backlight | LED backlight |
| Expansions | 2 PSAM, 2 SIM, 1 TF |
| Battery | Rechargeable li-ion polymer, 3.8 V, 7200 mAh |
| CPU | Cortex-A73 2.0 GHz octa-core |
| Operating System | Android 10.0 |
| Storage | 4 GB RAM or 64 GB ROM, MicroSD (max 256 GB expansion) |
| Humidity | 5 % RH to 95 % RH (non-condensing) |
| Drop Specifications | 5 ft (1.5 m) drop to concrete across the operating temperature range |
| Sealing | IP65, IEC compliance |
| ESD | ±15 kv air discharge, ±8 kV direct discharge |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| 4G | TD to LTEBand 38 or 39 or 40 or 41 FDD to LTEBand 1,2,3,4,7,17,20 |
| 3G | WCDMA (850 MHz or 1900 MHz or 2100 MHz); |
| 2G | GSM or GPRS or Edge 850 MHz or 900 MHz or 1800 MHz to 1900 MHz） |
| WIFI | 2.4G or 5G dual frequency, conforming to IEEE802.11 a, b, g, n or ac. |
| Bluetooth | Comply with Bluetooth4.1 |
| Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, USPlanet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
| Resolution | Rear 13 megapixel, front 5.0 megapixel |
| Lens | Auto-focus with LED flash |
| Protocol | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| R/W Range | 0.7 in x 1.9 in (2 cm to 5 cm) |
| Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz or 13.56 MHz |
| Protocol | EPC C1 GEN2 or ISO 18000-6C |
| Antenna Gain | Circular antenna (4 dBi) |
| R/W Range | 65.6 ft (20 m) (depend on tags and environment) |
| Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots (maximum) |
| Standard arrangement | One lithium battery one charging head One Type-c charging cable |

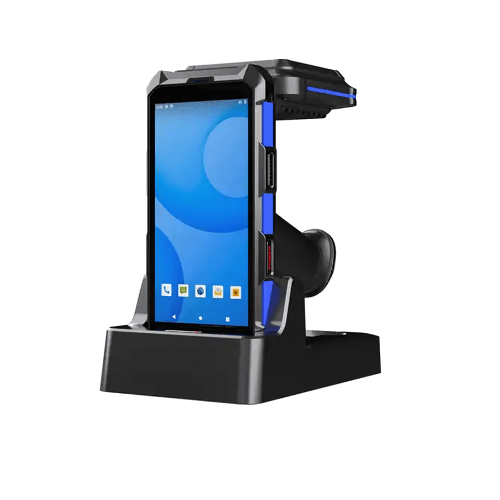

| Matching | Charging stand |
| Operating Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Storage Temperature | 68 °F to 158 °F (20 ℃ to 70 ℃) |
| Dimension | 6.69 in x 3.14 in x 1.10 in (170 mm x 80 mm x 28 mm) |
| Weight | 17.6 oz (500 g) |
