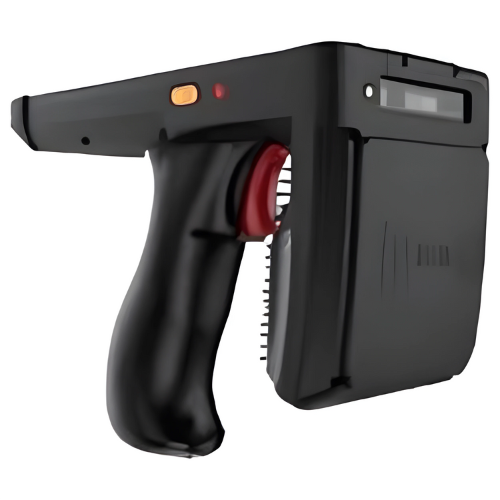

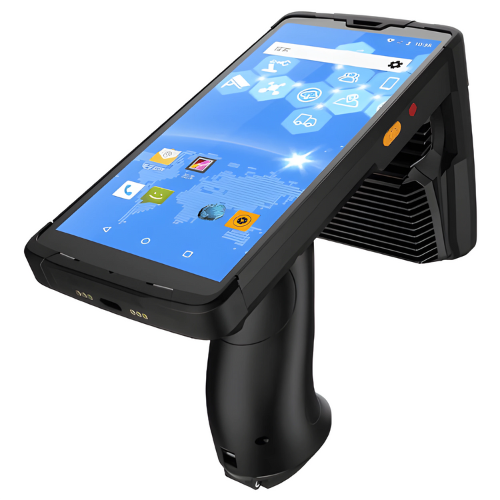

Amuse Tech Solutions UHF RFID Handheld Reader Android PDA – 1D Or 2D Scanner
Portable RFID reader with EPC Class 1 Gen 2 protocol, 6 in (15.24 cm) IPS display, Octa-core CPU, UHF module, IP 65 sealing, drop-resistant.
Description
Technical Specifications
| Frequency | China 920 MHz To 925 MHz North America 902 MHz To 928 MHz Euro Frequency 865 MHz To 867 MHz |
| Protocol | EPC Class 1 Gen 2 (ISO 18000-6C) |
| Keypad | Power, 2 Scan Keys, Volume + Or – |
| Battery | Built-in 6000 mAh Lithium-ion Polymer Battery (6000 mAh, 3.8 V); Swappable 4000 mAh Lithium-ion Polymer Battery (4000 mAh, 3.8 V); Continuous Use: Over 8 Hours (Depending On User Environment); Charging Time:4 Hours (Charge Device By Standard Adaptor And USB Cab |
| Display | 6.0 in (15.24 cm) IPS 2160 x 1080 |
| Touch Panel | 5-Point Capacitive Touch Screen |
| Front Camera | 5 MP FF |
| Rear Camera | 13 MP AF With Flash; 16 MP AF With Flash (Optional) |
| Audio | MIC, Receiver, Loudspeaker (1 W), Support Voice Call |
| Sensor | Proximity Sensor, Light Sensor, Accelerometer Sensor |
| Indicator LED | Power, Charging, Status Indicator |
| Vibrator | Support |
| Card Slot | 2 Slots For Nano SIM Card; 1 Slot For Micro SD Card |
| Interfaces | USB Type-C, USB 2.0, OTG |
| CPU | Octa-core 2.0 GHz |
| RAM + ROM | 4 GB + 64 GB |
| Expansion | Supports Up To 256 GB Micro SD Card |
| Communication | WWAN, WLAN, Bluetooth, GNSS |
| 2 D Scanner | Newland CM 60 |
| 1 D Symbologies | EAN 13, EAN 8, UPCA, UPCE, Code 128, Code 39, Code bar, UCC/EAN128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, etc. |
| 2 D Symbologies | PDF 417, Micro PDF 417 , QR Code, Micro QR , Data Matrix, AZTEC, Han Xin, Maxi code, Composite, etc. |
| Other | Australia Post, China Post, Japanese Post, KIX Code, USPS Planet Or Post Net Or Intelligent Mail, OCR-A, OCR-B, etc. |
| UHF Module | Impinj E 710 Or R 2000 |
| Antenna | 4 dBi Four-arm Spiral Antenna (Circular Polarization) |
| Power | Standby Power Consumption Is About 0.25 W, Maximum 7.5 W (Typical 7 W) |
| Read Range | Indoor > 59.05 ft (18 m), Outdoor > 26.25 ft (8 m) |
| Read Rate | ≥ 200 Tags per s |
| SDK | SPEEDATA Software Development Kit |
| Language | Java |
| Tool | Android Studio |
| Tumble Specification | 3280.84 ft x 1.64 ft (1000 m x 0.5 m) Rolls |
| Drop Specification | 3.94 ft (1.2 m) Free Drops To Concrete |
| Sealing | IP 65 |
| ESD | ± 15 KV Air Discharge, ± 8 KV Conductive Discharge |
| Certificate | CE, ROHS, FCC, BIS |
| Humidity | 5 % RH To 95 % RH Noncondensing |
| Operating Temp. | -4 ℉ To 131 ℉ (-20 ℃ To 55 ℃) |
| Storage Temp. | -22 ℉ To 158 ℉ (-30 ℃ To 70 ℃) |
| Dimensions | 6.30 in x 3.20 in x 0.62 in (196.4 mm x 74.8 mm x 26.8 mm) |
| Weight | 21.16 oz (600 g) (With Battery) |
