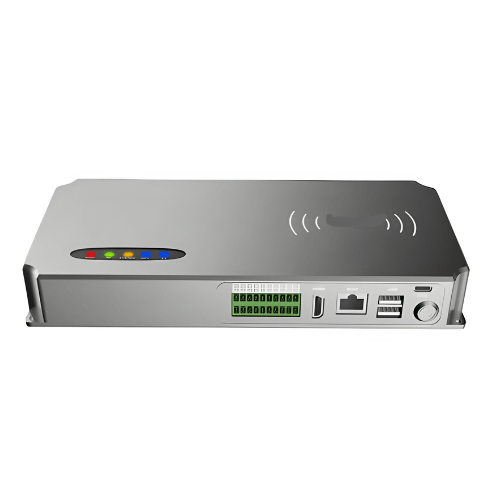

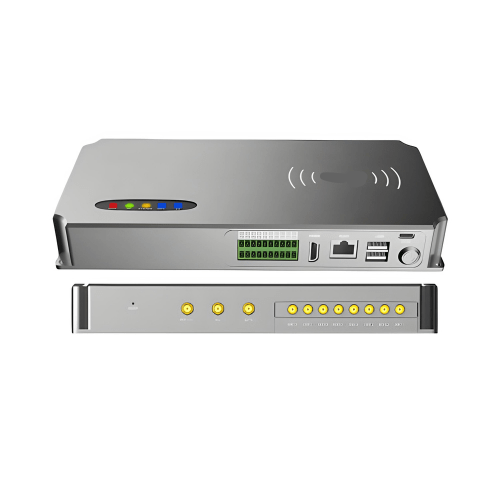

Amuse Tech Solutions UHF RFID Fixed Reader 8 Ports Long Range – Frequency 860 MHz To 960 MHz
RFID reader with a wide reading distance of up to 82 ft (25 m), ideal for asset tracking.
Description
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | EPC Global UHF class1 Gen2 or ISO 18000-6 |
| Reading Distance | 0 ft to 82.0 ft (0 m to 25 m) |
| Power Supply | With 220 V AC input, the output of +12 V or 3A DC power converter |
| Software | Provide demo software and API based Android or iOS platform system |
| Certificates | CE FCC RoHS |
| Shell Material | Die cast aluminum alloy |
| Operating System | Android 7.1.2 |
| CPU Processor | Qualcom platform, 1.8 GHz quad core A7 processor, with a main frequency of up to 1.8 GHz |
| GPU Graphics Processor | GPU and supports 4K and H.265 hard decoding |
| Antenna Detector | Support |
| RAM + ROM Memory | 1 GB LPDDR3+ 8 GB eMMC |
| Built In Storage SD | Supports SD card X 1, up to 128 GB |
| USB Interface | 2 USB 2.0 interfaces (HF terminals), 1 debugging interface OTG (TYPE-C) |
| HDMI | Support video 1 X HDMI interface (1080 P) |
| Type-C | OTG, external debugging interface |
| Input Voltage | DC 12 A or 3 A |
| Power | 25 W |
| Environmental Temperature Detection | Support |
| I/O Interface | With 4 upto coupler inputs (initial low level) and 4 relay output ports (capable of loading DC 24 V or 2 A) |
| WIFI | Support IEEE802.11n or b or g 2 .4 G |
| Bluetooth | Support Bluetooth 4.0 |
| 4G | 4G: Mobile (TD-LTE); 4G: China Unicom (FDD-LTE); 4G: Telecommunications (FDD-LTE); 4G: China Unicom (TD-LTE) |
| Serial Port | 1-channel serial communication |
| Network Connection | 10 M or 100 BASE-T Ethernet |
| SIM Card Interface | 1 |
| RF Interface | 4-channel SMA antenna interface |
| Reliable Firmware Upgrade | Scalable upgrade mechanism |
| Application Software Interface | Provides API development packages and C and Java application routines |
| Output Power | 0 dBm to 33 dBm ±1 dBm |
| Receiving Sensitivity | ＜﹣85dBm |
| Tag Recognition Peak | ＞800 times per second |
| Writing Distance | 0 ft to 32.8 ft (0 m to 10 m) |
| Working Temperature | -4° F to 149° F (﹣20 °C to﹢65 °C) |
| Storage Temperature | -40 °F to 185 °F (﹣40 °C to﹢85 °C) |
| Environmental Humidity | ＜95 % (non-condensing state) |
| Dimension | 9.4 in X 4.5 in X 1.2 in (240 mm x 115 mm x 33 mm) |
