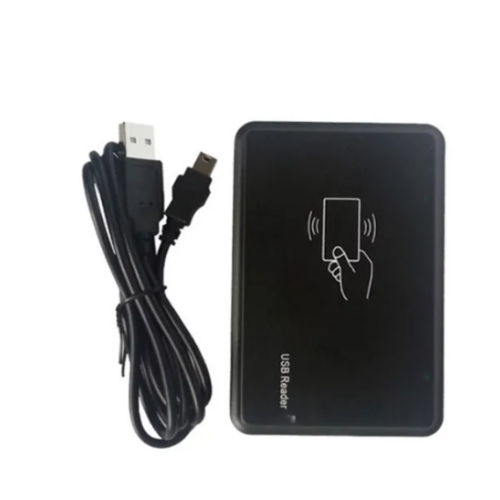

Amuse Tech Solutions UHF RFID Desktop Reader Tag Reader UHF READER USB Keyboard Emulator Cursor Input – 902 MHz To 928 MHz Or 865 MHz To 868 MHz
RFID reader: EU (865 MHz to 868 MHz), US (902 MHz to 928 MHz), USB 2.0 interface, adjustable RF power (18 dBm to 26 dBm), write and keyboard modes.
Description
Features
- Adopt micro-UHF antenna
- Independent intellectual property design
- Working frequency: 840 MHz to 960 MHz
- Support protocol: EPC C1 GEN2 or ISO 18000 – 6C
Technical Specifications
| Frequency | 865 MHz To 868 MHz (EU), 902 MHz To 928 MHz (US) |
| Protocol | ISO18000-6C (EPC GEN2) |
| Interface | USB 2.0 (Free Drive) |
| RF Power | 18 dBm To 26 dBm (Adjustable) |
| Tow Modes | Write Tag Mode (Read And Write) |
| Keyboard Input Mode (Only Read) | |
| Read Speed | Single Card Average Reading< 6MS Or 32 Bits (Set By Software) |
| Read Distance | 3.94 in (100 mm) (Depends On Tag) |
| Write Distance | 1.97 in (50 mm) (Depends On Tag) |
| Read Tip | Buzzer And LED |
| Built-In Antenna | 1 dBi |
| Power Supply | Mini USB |
| Way Of Working | FHSS |
| Working Temp | 14 °F To + 55 °F (-10 °C To + 55 °C) |
| Size | 3.94 in x 2.75 in x 0.39 in (100 mm x 70 mm x 10 mm) |
| Net Weight | 3.52 oz (100 g) |
