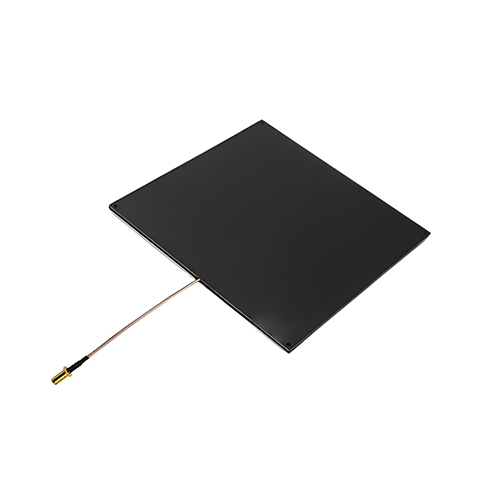

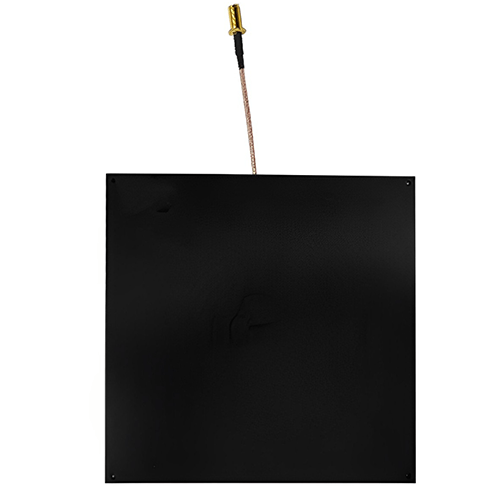

Amuse Tech Solutions UHF RFID 865-928Mhz Antennas Global Frequency Coverage Near Field Panel For Retail Application-PVC Material
UHF RFID 865-928Mhz Antennas with aluminum and plastic housing, PVC material, circular polarization and SMA K or customized connector options.
Description
Features
- Aluminum and Plastics housing material
- PVC material
- Circular polarization
- SMA K (Or Customized) connector
Technical Specifications
| Frequency | 865 MHz to 928 MHz |
| Protocol | ISO18000-6C or EPC GEN 2 and ISO18000-6B |
| Material | Aluminum and Plastics Housing |
| VSWR | ≤ 1.8 to 1 |
| Gain |  – 10 dBi |
| Material | PVC |
| Polarization | Circular Polarization |
| Input Impedance | 50 Ω |
| Connector | SMA K (Or Customized) |
| Read Range | 0.39 in to 5.91 in (1 cm to 15 cm) |
| Operating Temperature | – 7.6 °F to 131 °F (- 22 °C to + 55 °C) |
| Size | 12.6 in x 12.6 in x 0.24 in (320 mm x 320 mm x 6 mm) |
| Gross Weight | 1.1 lb (0.5 kg) |
