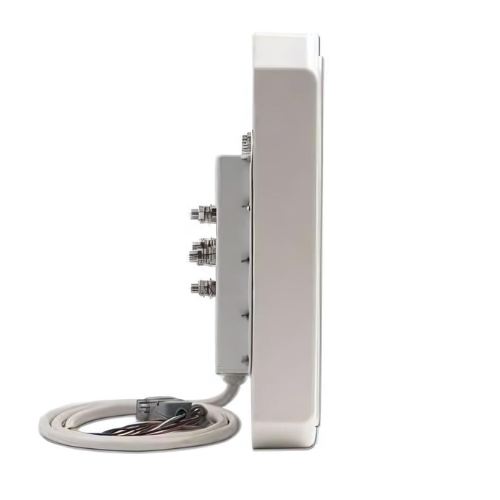

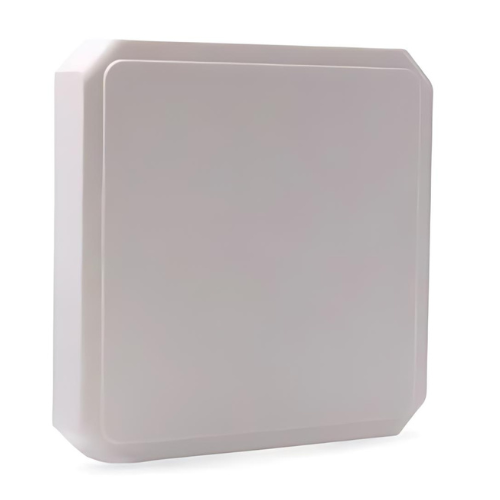

Amuse Tech Solutions UHF Long Range Integrated RFID Reader With Linear Antenna – Built in Antenna 12 dBi Linear Polarization
A RFID reader with 865 MHz to 868 MHz and 902 MHz to 928 MHz frequencies. It has EPC C1 Gen2 protocol, IP65 protection and also has12 dBi antenna.
Description
Features
- Integrated RF reader antenna
- Small in size
- IP65, industrial control joint easy to deploy.
- Tag buffer size up to 800 pcs
- Excellent UHF R or W function,
- Adapt to global working frequency
- It supply SDK
Technical Specifications
| Frequency | 865 MHz to 868 MHz or 902MHz to 928 MHz |
| Protocol | EPC C1 Gen2 or ISO18000-6c |
| Shell Material | ABS + PC |
| Antenna Front Housing Color | Gray |
| Antenna Rear Housing | Die-casting aluminium alloy |
| Installation Method | Holding pole |
| Radio Frequency | FDY independent R&D technology |
| Built-in Antenna | 12 dBi linear polarization |
| R or W Range | Read range (10 m to 25 m), write range >9m (test tag: AZ9662Inlay) |
| Group Read Rate | 1 pc EPC tag |
| Serial Rate | 9600 bps to 115200 bps |
| RJ45 Rate | 10 Mbps |
| Reading Indicator | Buzzer |
| Power Consumption | 10 Mbps |
| Power | 30 dBm (Adjustable by 1dBm Step with FDY Demo Softw |
| Communication Interface | Standard: RS232, RJ45, Wiegand; Optional: 4G or WiFi or |
| Gpio(for Your Optional) | 1 Relay Output, 1 Trigger Input |
| Power Supply | 220V AC Input, +12V or 2A Adaptor DC Output |
| Applications | Parking, Hospital, Library, Company, Bank, Store |
| Application Software | API Development Kit and Application Routine Based |
| Sdk | C#, C++,Delphi, Vb, Java |
| Lighting Protection | DC ground |
| Protection Level | IEC IP65 |
| Humidity | 5 % RH to 95 % RH, non condensing |
| Operating Temperature | -13 °F to 158 °F (-25 ºC to + 70 ºC) |
| Storage Temperature | -22 °F to 176 °F (-30 ºC to +80 ºC) |
| Dimensions | 17.5 in X 17.5 in X 1.5 in (445 mm X 445 mm X 40 mm) |
| Weight | 9.9 lbs (4.5 kg) |
