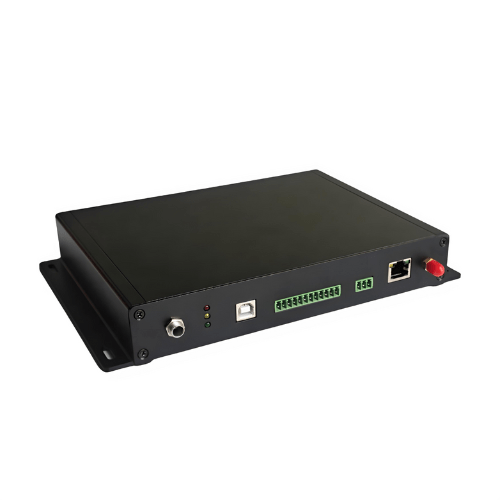

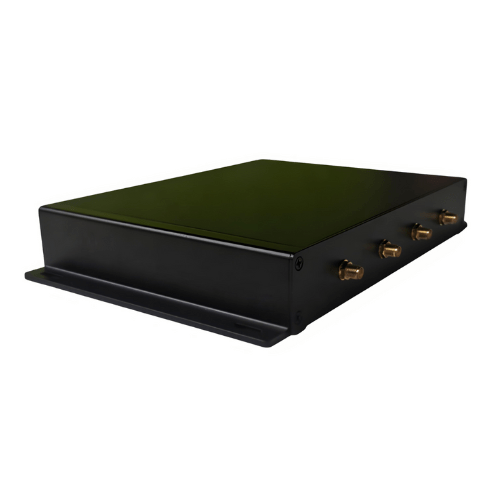

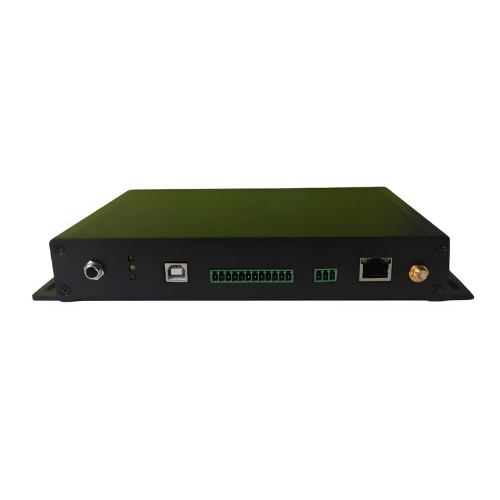

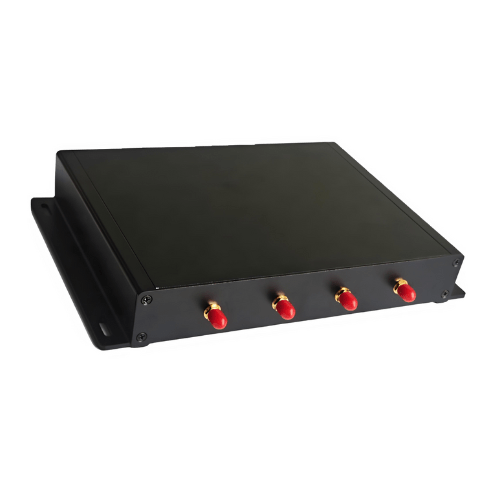

Amuse Tech Solutions Long Range Distance Fixed Uhf Rfid Reader With 4 Antenna Ports For Warehouse SDK
Explore our versatile RFID reader featuring Impinj R2000 chipset, FHSS or fixed frequency transmission, and support for various communication interfaces.
Description
Overview
Explore our versatile RFID reader featuring Impinj R2000 chipset, FHSS or fixed frequency transmission, and support for various communication interfaces.
Technical Specifications
| Chipset | Impinj R2000 |
| Spectrum Range | 860 MHz to 960 MHz (customized optional) |
| Protocol | EPC global Class1 Gen2, ISO 18000-6C |
| Transmission Mode | FHSS or fixed frequency, Support RSSI |
| RF Output Power | 33 dBm |
| Operating Modes | Passive mode, real-time inspection mode |
| Anti-Collision Modes | Supports EPC, TID, USER, EPC+TID |
| Peak Inventory Speed | >700 tags per s |
| Tag Buffer Size | 1000 tags at 96 bits EPC |
| Data Operations | Supports EPC and TID area data read/write |
| Power Supply | Single +12V power supply, optional POE |
| Communication Interfaces | RS232, USB, RJ45 (TCP/IP), WIFI (optional), 4G (optional), POE (optional) and others |
| I/O Control | 2 channels of input control (5V signal), 2 channels of output control (5 V signal), 2 channels of relay control |
| Software Support | Free Windows, Linux & Android DEMO software and SDK for testing and development |
| SDK | Supports X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android |
| Temperature Sensor Support | Supports temperature sensor RFID tag and the normal RFID tag |
