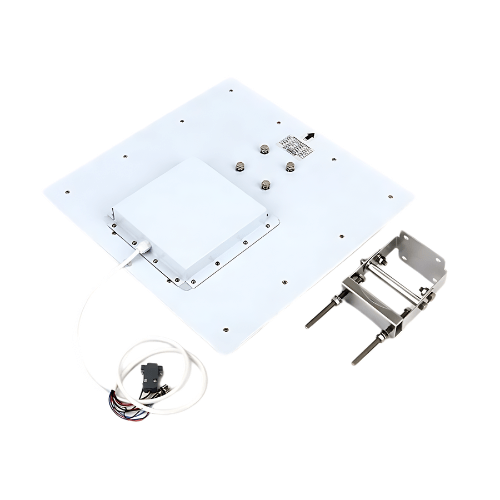

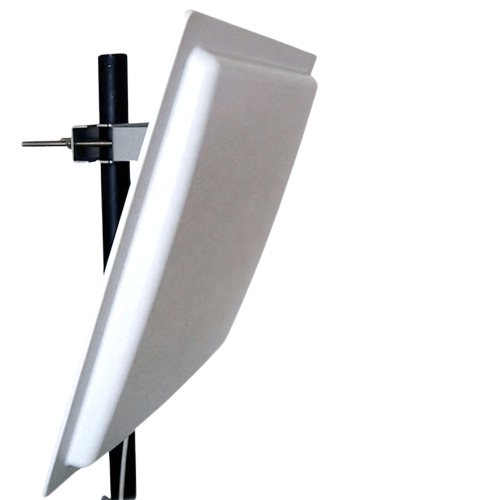

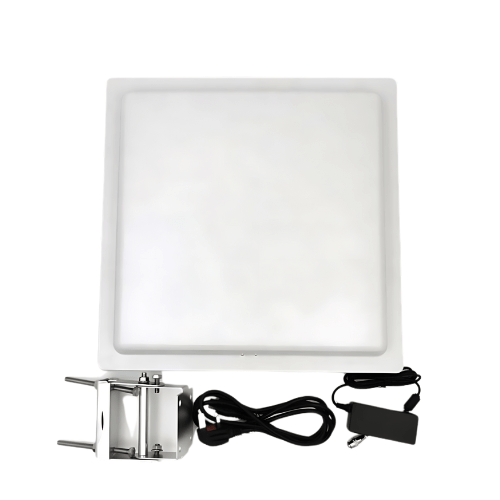

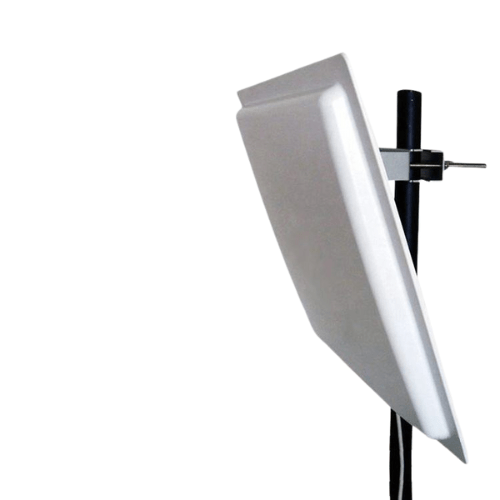

Amuse Tech Solutions Long Distance UHF RFID Card Reader with Metal Case Waterproof – Reading Range Max 49.2 ft (15 m)
Amuse Tech Solutions Long Distance UHF RFID Card Reader with Metal Case Waterproof can be compatible with mult-protocol, integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, access control, time attendance, bus transportation etc lots of field, can read and write, fast speed read and recognized.
Description
Overview
Amuse Tech Solutions Long Distance UHF RFID Card Reader with Metal Case Waterproof can be compatible with mult-protocol, integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, access control, time attendance, bus transportation etc lots of field, can read and write, fast speed read and recognized. This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B. It is an industry grade product for harsh environment, IP-65 protection case for waterproof, easy to install.
Technical Specifications
| Protocol | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Frequency Range | Standard ISM 902 MHz to 928 MHz or ISM 865 MHz to 868 MHz, other |
| Operation Mode | FHSS or fixed frequency (set by software) |
| RF Power | 0 dBm to 30 dBm, software adjustable |
| Reading Speed | Software Programmable, Average Reading per 64Bits: <6ms |
| Reading Mode | Timing or Touch, Software Programmable |
| Data Ports | Standard: Wiegand26/34, RS485, RS232; software programmableOptional: TCP/IP (RJ45), WIFI |
| Data Input Port | Trigger input one team |
| Reading Range | Max 49.2 ft (15 m) |
| Reading Clue | Buzzer |
| Antenna | Built-in line polarization Antenna, Gain:12dbi |
| Power Supply | DC+ 12 V (Power Adapter) |
| Operation Temp | -4 °F to 176 °F (-20 °C to +80 °C) |
| Dimension | 17.3 in x 17.3 in x 1.9 in (440 mm × 440 mm × 50 mm) |
| Weight | 9.9 lb (4.5 kg) |
