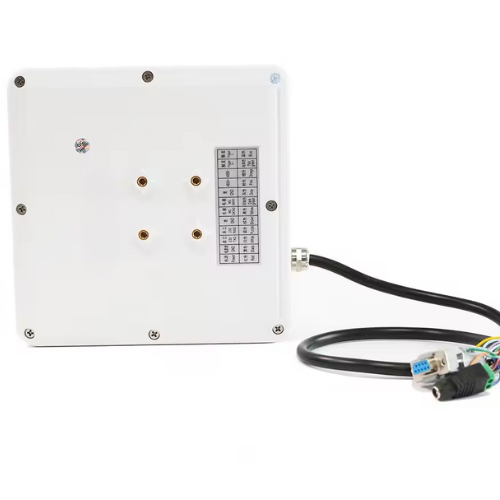

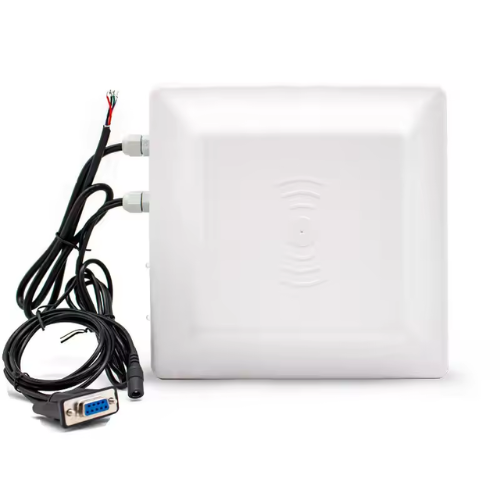

Amuse Tech Solutions Intelligent Access Control System For Parking System Antena RFID UHF Card Reader -With Frequency From 865 MHz To 928 MHz
Upgrade your parking system with our Intelligent Access Control System. Long-range UHF RFID integration for seamless and secure access.
Description
Technical Specifications
| Frequency Range | Standard ISM 902 MHz to 928 MHz or ISM 865 MHz to 868 MHz, other |
| Support Protocol | ISO18000-6B, ISO18000-6C (EPC GEN2) |
| Operation Mode | FHSS or fixed frequency (set by software) |
| Rf Power | 0 dBm to 30 dBm, software adjustable |
| Reading Speed | Software Programmable, Average Reading per 64Bits: <6ms |
| Reading Mode | Timing or Touch, Software Programmable |
| Â Data Ports | Standard: Wiegand 26 or 4, RS485, RS232; software programmable |
| Optional: TCP or IP (RJ45), WIFI | |
| Data Input Port | Trigger input one team |
| Reading Clue | Buzzer |
| Antenna | Built-in line polarization Antenna, Gain:12dbi |
| Power Supply | DC +12 V (Power Adapter) |
| Reading Range | Max 49.21 ft (15 m) |
|  Dimension | 17.32 in x 17.32 in x 1.97 in (440 mm × 440 mm × 50 mm) |
| Weight | 9.92 lbs (4.5 Kg) |
