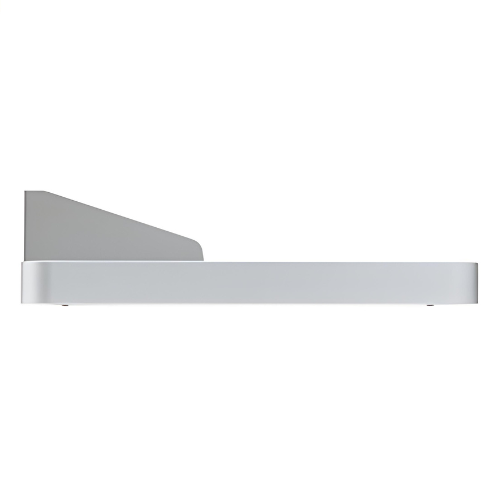

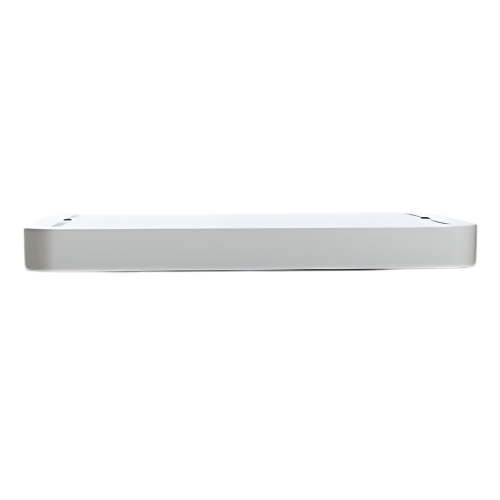

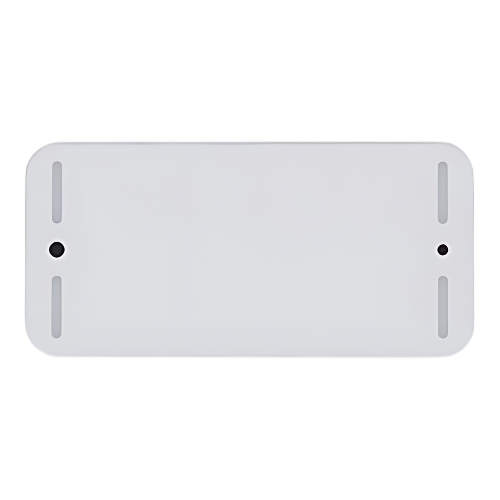

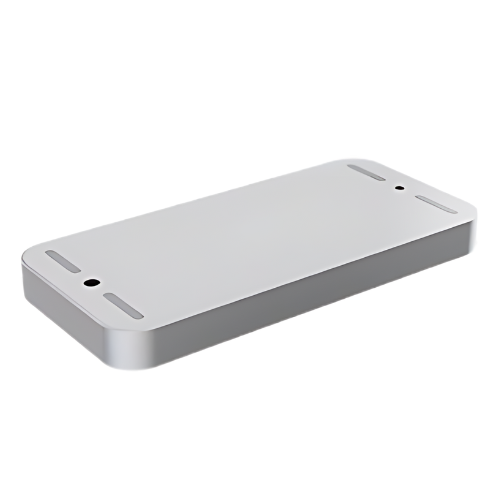

Amuse Tech Solutions High Performance UHF RFID Portal Reader, Linux OS 4.1.15 Top Mounted RFID Portal For Logistics Industry
High-performance UHF RFID portal reader for the logistics industry, operating on Linux OS 4.1.15. Top or side mounted with a sleek aluminum and acrylic design. Supports ISO 18000-6C protocol, adjustable output power (8-33 dBm), and efficient power dissipation (45W). Features RS-232(DB9) and RJ45 communication interfaces. Optimal for installation heights between 9.84 ft to 16.40 ft, withstanding temperatures from -4°F to 140°F. Dimensions: 17.32 in x 8.26 in x 1.57 in; weight: 16.53 lbs. Reliable performance in 10%-95% RH environments.
Description
Technical Specifications
| Protocol | ISO 18000 6C |
| Material | Aluminum, acrylic |
| Installation Mode | Top mounted or side mounted |
| Power Dissipation | About 45 W |
| Communication Interface | RS 232(DB9), RJ45 |
| Output Power | 8 dbm to 33 dbm (adjustable) |
| Power Supply | AC 220 V ± 10 % 47 to 63 Hz |
| Humidness | 10 % to 95 % RH no condensation |
| Installation Height | 9.84 ft to 16.40 ft (3 m to 5 m) |
| Weight | 16.53 lbs (7.5 kg) |
| Size | 17.32 in x 8.26 in x 1.57 in (440 mm × 210 mm × 40 mm) |
| Operating Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Storage Temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Frequency Range | 902 MHz to 928 MHz |
