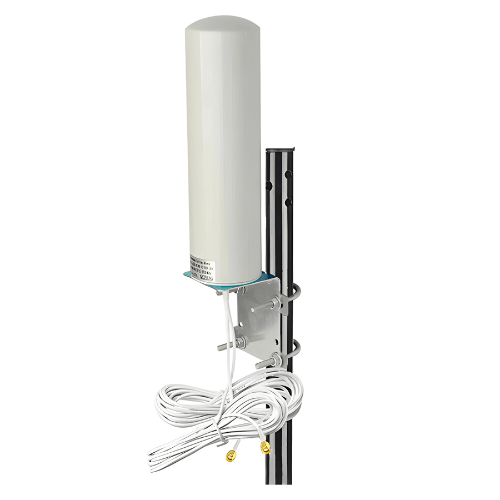

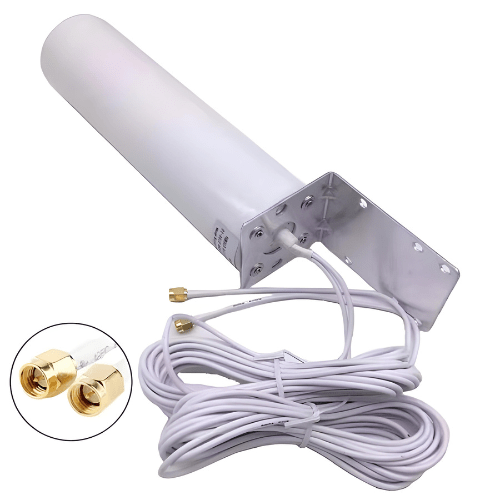

Amuse Tech Solutions High Gain Onmi External Outdoor Directional GSM 3G Or 4G Lte Antenna Barrel Antenna-Wide Frequency Range
RFID antennas superior electrical performance, wide frequency range, and hassle-free maintenance for seamless operation.
Description
Features
- Excellent Electrical Performance
- Wide Frequency Range
- Totally Maintenance Free
Technical Specifications
| Gain | 10 dBi |
| Vertical Beam Width | 55° to 45° |
| Range | 698 MHz to 960MHz 1710 MHz to 2700MHz |
| Max Power | 100W |
| VSWR | ≤ 1.5 |
| Input Impedance | 50 Ω |
| Connector Type | N Female, SMA Female, Customized |
| Net Weight | 1.04 lb (470 g) |
| Lightning Protection | DC Ground |
| Dimension | 2.44 in x 9.06 in (6.2 cm x 23 cm) |
| Installation | Pole 1.57 in x 2 in (40 mm x 50 mm) |
| Single Gross Weight | 3.66 lb (2.000 kg) |
