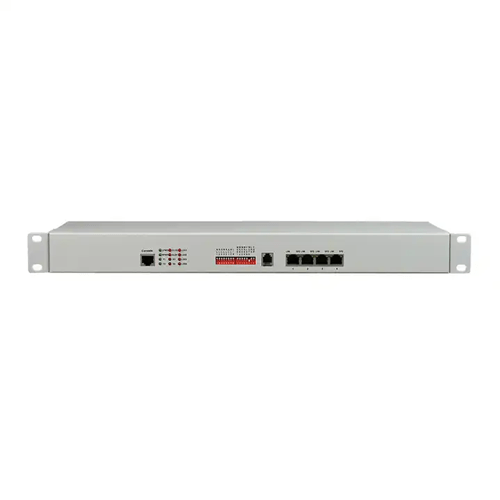

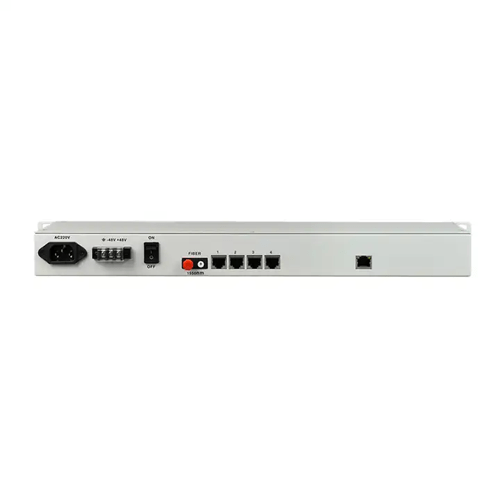

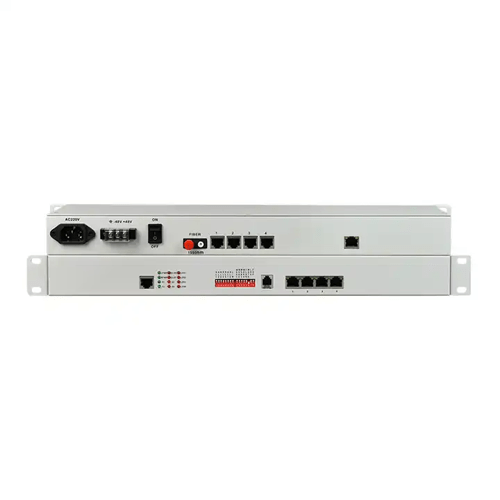

Amuse Tech Solutions Gigabit Fiber Convertor
Amuse Tech Solutions gigabit fiber converters provide 1-4 Channel E1 interfaces, master optical fiber interfaces, and backup optical fiber interfaces, 1-4 Channel 100 M or 1000 M Ethernet interfaces (Line Rate 1000 M), and 2 expansion interfaces. 4 Channel Ethernet interfaces are switch interfaces that can support VLAN.
Description
Overview
Amuse Tech Solutions gigabit fiber converters provide 1-4 Channel E1 interfaces, master optical fiber interfaces, and backup optical fiber interfaces, 1-4 Channel 100 M or 1000 M Ethernet interfaces (Line Rate 1000 M), and 2 expansion interfaces. 4 Channel Ethernet interfaces are switch interfaces that can support VLAN. 2 expansion interfaces can be used as the transmission channels of RS232, RS485, or RS422 asynchronous data, voice signals, 2- or 4-line E and M audio signals, switch signals, Ethernet signals (Bandwidth 2 M). They are very flexible. They have alarm functions. The works are reliable, stable, and have low power consumption, high integration, and small sizes.
Features
- Self-copyrighted IC with 1.5 G bandwidth.
- Ethernet interface: 10M/100M/1000M, auto adaptable.
- 4-channel switching interface supports VLAN.
- E1 interface complies with G.703.
- PCM digital business phone (optional).
- Console management interface provided.
- Optical signal loss detection.
- Remote device status visible locally.
- Command remote interface Loop Back.
- Transmission distance: 1.24 mi to 74.56 mi (2km to 120km).
- Multiple power supply options available.
- Polarity detection for DC power.
 Technical Specifications
| Interface Standard | comply with protocol G.703 |
| Interface Rate | N x 64 Kbps ±50ppm |
| Interface Code | HDB3 |
| E1 Impedance | 75 ohm (unbalance), 120 ohm (balance) |
| Jitter tolerance | In accord with protocol G.742 and G.823 |
| Allowed Attenuation | 0 dBm to 6 dBm |
| Interface rate | 10 Mbps or 100 Mbps, half or full duplex auto-negotiation |
| Interface Standard | Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) |
| Connector | RJ45, support Auto-MDIX |
| power supply | AC 180 V to 260 V, DC 48 V, DC +24V |
| Power consumption | ≤10 W |
| working temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Working Humidity | 5% to 95 % (no condensation) |
| Storage temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Inner packing size | 20.55 in x 7.79 in x 18.97 in (522 mm x 198 mm x 482mm) |
| Storage Humidity | 5% to 95% (no condensation) |
