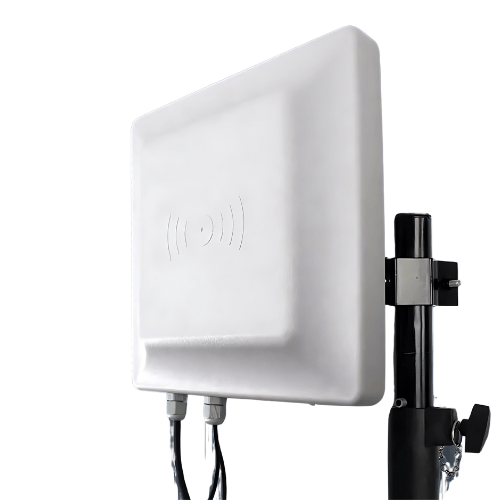

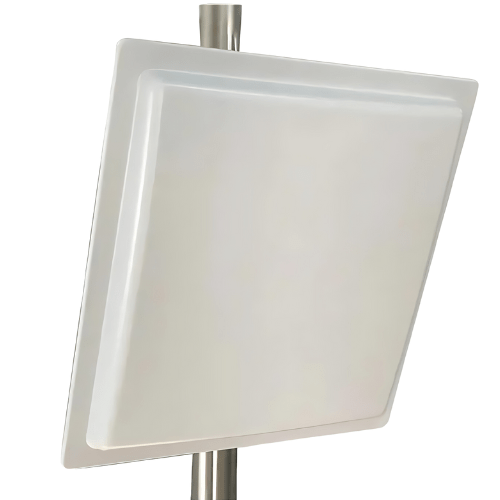

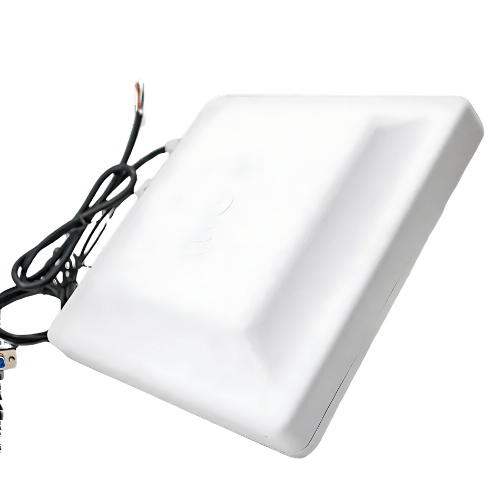

Amuse Tech Solutions Fixed UHF RFID Reader Rugged – Anti-Thunder 6000 V
Explore our advanced RFID reader: supports ISO18000-6C, adjustable transmit power. Versatile interface options and long read distance. Discover now!
Description
Technical Specifications
| Support Protocol | ISO18000-6C (EPC CLASS1 GEN2) |
| Working Frequency | 902 MHz to 928 MHz (USA) or 865 MHz to 868 MHz (European) |
| Encryption | Can encrypt directly, anti-copy |
| Transmit Power | 0 dbm to 30 dbm (Adjustable by software) |
| Software &Â SDK | DEMO and C, VC, Java SDK |
| Anti-Thunder | 6000 V |
| Frequency Modulation | Hopping or fixed frequency |
| Antenna | 12 dBi circular polarization |
| Interface | WG 26 or 34;Â RS232;Â RS485;Â Customized –TCP/IP RJ45; WIFI |
| Case Material | ABS |
| Power Supply | Adapter (into +12 V DC) |
| Read Distance | Up to 82.02 ft (Up to 25 m) (according to tag), can adjust by software |
| Read Prompt | Buzzer |
| Storage Temp | -40 °F to 212 °F (-40 °C to +100 °C) |
| Working Temp | -4 °F to 176 °F (-20 °C to +80 °C) |
| Dimension | 9.25 in x 9.25 in x 2.24 in (235 mm x 235 mm x 57 mm) |
| Weight | 11.02 lb (5 kg) |
