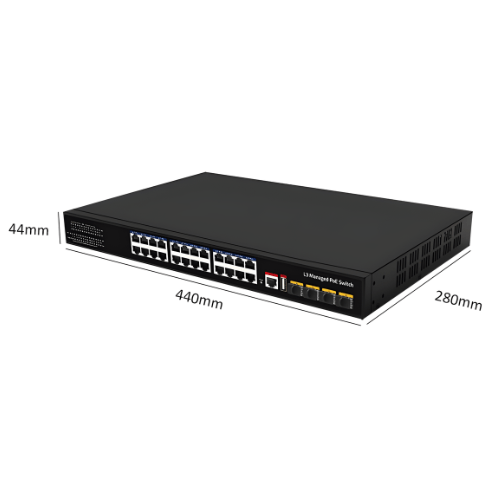

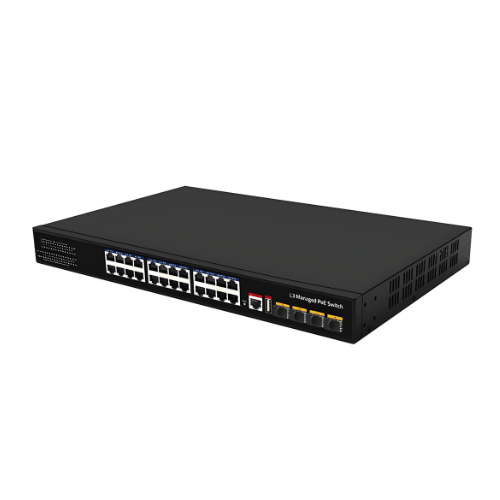

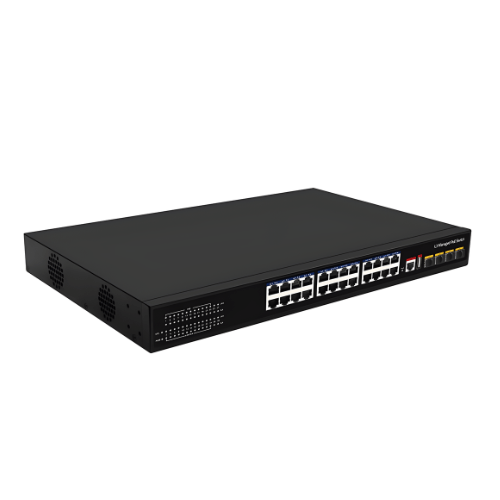

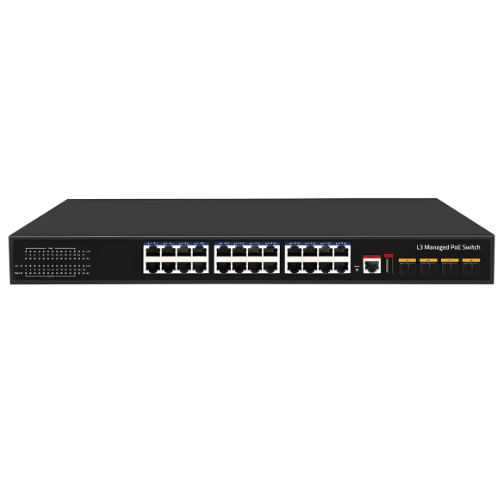

Amuse Tech Solutions Ethernet Poe Switch
This Ethernet Poe Switch has a power supply of AC 100 v to 240 V or 50 Hz to 60 Hz, a Capacity of 128 Gbps, and a flash memory of 16 Mb.
Description
Features
- Layer 3 network managementÂ
- Gigabit high speed and stabilityÂ
- Gigabit high speed forwarding
- Full duplex Gigabit forwardingÂ
- Each network port can reach 1000 Mbps transmission rate
- Powerful data processing capabilitiesÂ
- Supports diverse management and maintenance methods
Technical Specifications
| Power | AC 100 V to 240 V or 50 Hz to 60 Hz |
| Ethernet | 24 x 10 Mbps or 100 Mbps or 1000 Mbps POE Port 4 x 10 G SFP Port 1 x RJ 45 Console Port 1 x USB Port |
| Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| DDR SDRAM | 128 MB |
| Flash Memory | 16 MB |
| Packet Buffer Memory | 12 Mbit |
| MAC Address | 16 K |
| Jumbo Frame | 12 Kbytes |
| VLANs | 4096 |
| MTBF | 100000 hours |
| Network Protocol | IEEE 802.3: Ethernet MAC Protocol IEEE 802.3 i: 10 BASE-T Ethernet IEEE 802.3 u: 100 BASE-TX Fast Ethernet IEEE 802.3 ab: 1000 BASE-T Gigabit Ethernet IEEE 802.3 z: 1000 BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3 ae: 10 G Ethernet (optical fiber） IEEE 802.3 az: Energy-efficient Ethernet IEEE 802.3 ad: Standard method of performing link aggregation IEEE 802.3 x: flow control IEEE 802.1 ab: LLDP or LLDP-MED (Link Layer Discovery Protocol） IEEE 802.1 p: LAN Layer 2 Qos or Cos protocol (multicast filtering function) related to traffic priority IEEE 802.1 q: VLAN Bridge Operation IEEE 802.1 x: Client or Server Access Control and Authentication Protocol IEEE 802.1 d: STP IEEE 802.1 s: MSTP IEEE 802.1 w: RSTP |
| PoE Protocol | IEEE802.3 af（15.4 W） IEEE802.3 at （30 W） |
| Industry Standard | EMI: FCC Part 15 CISPR (EN 55032) class A EMS: EN 61000-4-2 (ESD) |
| Network Medium | 10 Base-T: Cat 3, 4, 5 or above UTP or STP ≤ 100 m (328.08 ft) 100 Base-TX: Cat 5 or above UTP or STP ≤ 100 m (328.08 ft) 1000 Base-TX: Cat 5 or above UTP or STP ≤ 100 m (328.08 ft) Multi-mode Fiber: 50 or 125, 62.5 or 125, 100 or 140 um Single-mode Fiber: 8 or 128, 8.7 or 125, 9 or 125, 10 or 125 um |
| Working Environment | Working Temperature: 14 °F to 122 °F (-10 ℃ to +50 ℃) Storage Temperature: -40 °F to 158 °F (-40 ℃ to +70 ℃) Working Humidity:10 % to 90 %, non-condensing Storage Temperature:5 % to 90 %, non-condensing Working Height: Maximum 1.89 mi (3048 m) Storage Height: Maximum 1.89 mi (3048 m) |
