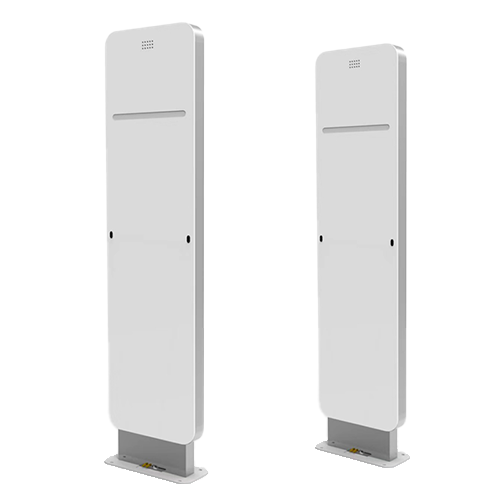

Amuse Tech Solutions 902-928MHz UHF RFID Wall-Mounted Portal Reader LINUX System Anti Theft RFID Gate For Warehousing And Logistics
Explore our RFID reader with adjustable frequency, RF output up to 30dBm. Customizable reading distance, metal or ABS and optional Android system.
Description
Technical Specifications
| Frequency Range | 920 to 925 MHZ or 865 to 868MHZ |
| RF Output | 0 to 30 dbm（adjustable） |
| Communication Interface | RJ45, RS 232 or wireless transmission |
| Reading Distance Width | 39.37 in to 157.48 in (1 to 4 m) adjustable |
| Housing Material | Metal, ABS plastic |
| GP I/O Interface | 12 pin + 4 pin |
| Frequency | 860 to 960 MHz |
| Protocol | ISO 18000 6C |
| Exterior | Body beige or silver gray Panel beige or silver gray can be customized |
| Dimension | 14.56 in × 2.44 in × 58.43 in (370 mm x 62 mm x 1484 mm) |
| Operation Temperature | 14 °F to 122 °F (-10 ℃ to + 50 ℃) |
| Operating Voltage | AC220 V ± 10 ％ |
| Power | 20 W |
| Accessories | Audible alarm |

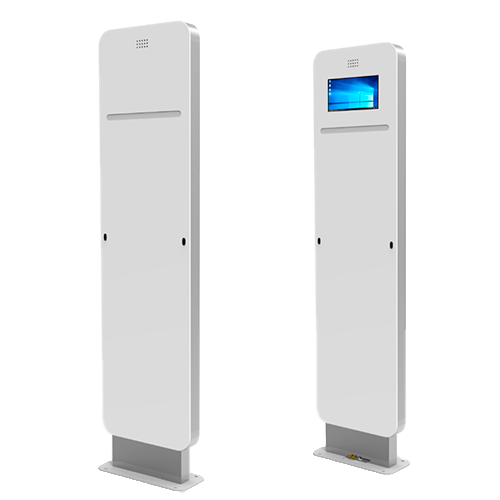

| Android System (Optional) | Optional external touch screen (10.41 inch) Android operating system 450TP） |
| Installation Method | No slotting, with 59.05 in (1.5 m) stainless steel cable trough |
| Weight | 77.16 (35 kg) |
| Single Package Size | 669.29 in × 17.71 in × 13.77 in (1700 cm X 45 cm X 35 cm) |
| Single Gross Weight | 149.91 Ib (68.000 kg) |
