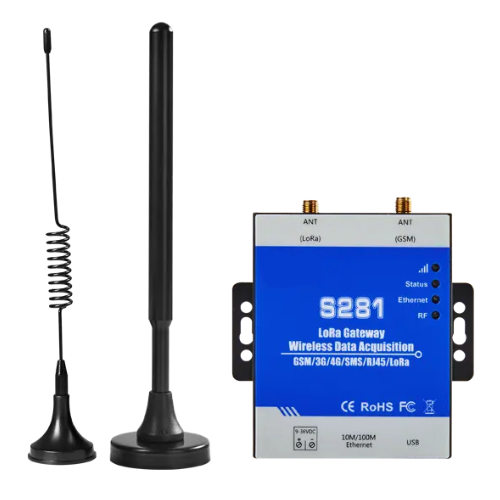

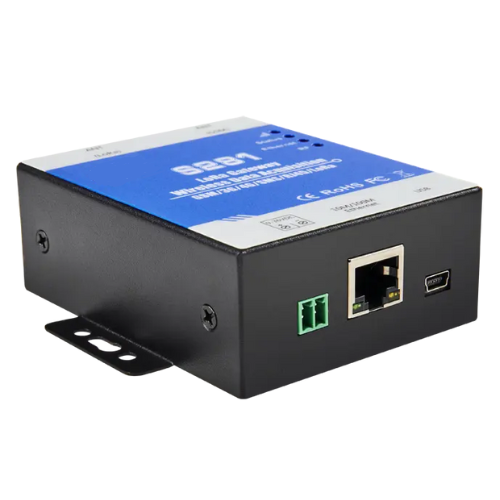

Amuse Tech Solutions 4G Wireless Collection Data
Amuse Tech Solutions 4G wireless collection data is based on LoRa RF technology.
Description
Overview
Amuse Tech Solutions 4G wireless collection data is based on LoRa RF technology. It’s mainly used for collecting multiple environmental data distributed in different long-range areas and transparent data transmission from device to cloud. With LoRa modulation technology, it’s capable of realizing multiple IO device monitoring, collecting data of temp & humidity, intensity of lighting, CO2, wind direction & speed and soil condition.
Features
- 12 V power adaptor
- 4G antenna
- Waterproof
- Dust Proof
Technical Specifications
| Input Voltage | 9 V DC to 36 V DC |
| Power Consumption | Normal: 130 mA at 12 V, Max: 150 mA at 12 V |
| Power Supply | USB |
| Qty | 1 |

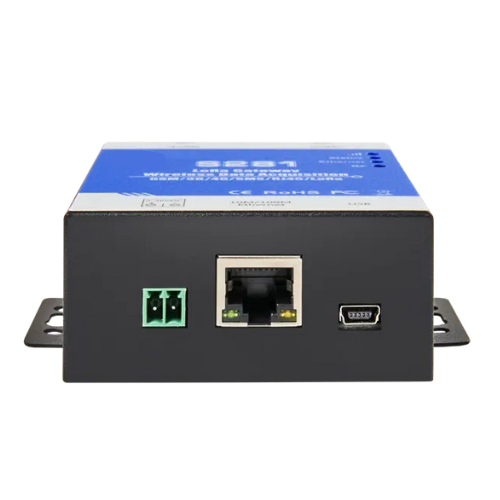

| Interface Spec | 1 Mini USB, 1 RJ 45, 10 Mbps / 100 Mbps |
| Protection Protocol | ESD air: 15 KV, Surge: 4 KV |
| Frequency Band | 402 MHz to 500 MHz |
| Urban Communication Distance | 39370.1 in (1 km) |
| Anti-Reverse, ESD | Air: 15 KV, Surge: 4 KV |
| Backup Battery | 3.7 V / 900 mAh |
| Ethernet | 10 Mbps / 100 Mbps |
| Working Temperature And Humidity | -50 °F to 185 °F (-45 ℃ to 85 ℃), 5% RH to 95% RH |
| Storage Temperature And Humidity | -49 °F to 221 °F (-45 ℃ to 105 ℃), 5% RH to 95% RH |
| Shell | Metal |
| Protection Level | IP 30 |
| Net Weight | 0.51 lb (235 g) |
| Size | 3.35 in x 2.95 in x 1.18 in (85mm x 75mm x 30mm) (L x W x H) |
