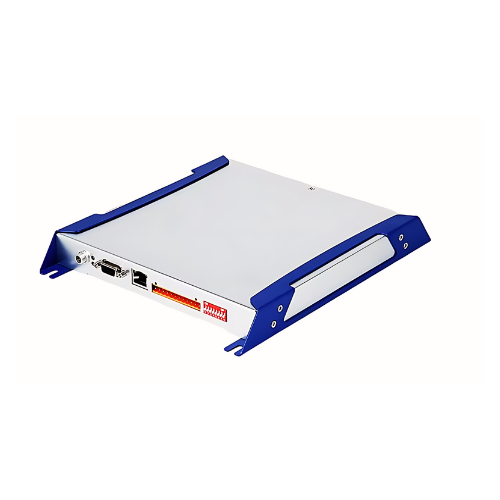

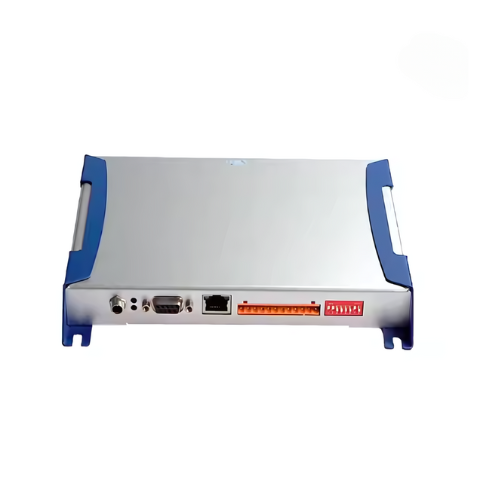

Amuse Tech Solutions – 4 Port UHF RFID Fixed Long-Range Reader Industrial Inventory – With The Frequency From 860 MHz To 960 MHz
This UHF RFID Reader is for industrial inventory (860 MHz to 960 MHz). IP65-rated, and robust design. Ideal for logistics and asset tracking.
Description
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Air Interface Protocol | EPC global UHF Class 1 Gen 2 or ISO 18000-6C |
| Body Material | Alufer |
| Input Voltage | DC 12 V to 24 V |
| Standby State Current | < 70 mA |
| Sleep State Current | < 100 uA |
| Maximum Working Current | 800 mA +/- 5 % at DC 12 V Input (33 dBm Average operating current of output power) |
| Output Power | 0 to 33 dBm |
| Output Power Accuracy | +/- 1 dB |
| Flatness Of Output Power | +/-0.25 dB |
| Acceptance Sensitivity | <- 85 dBm |
| Peak Speed Of Inventory Label | 700 sheets per second |
| Label RSSI | Sustain |
| Antenna Connection Protection | Sustain |
| Ambient Temperature Monitoring | Sustain |
| Working Mode | Stand-alone per intensive |
| Communication Interface | RS232 or TCP or IP |
| GPIO | 2-way input, 2-way output |
| Maximum Communication Baud Rate | Default 115200 bps (38400 or 460800 can be configured) |
| Heat Dissipation Mode | Air cooling |
| Protect Range | IP 65 |
| Read Range | 19.685 ft to 26.24 ft (6 m to 8 m) |
| Working Humidity | < 95 % 77 °F (+25 °C) |
| Working Temperature | -22 °F to 158 °F (-30 °C to +70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to +85 °C) |
| Measurement | 7.87 in x 9.44 in x 1.18 in (200 mm x 240 mm × 30 mm) |
| Weight | 2.55 lb (1.16 kg) |
