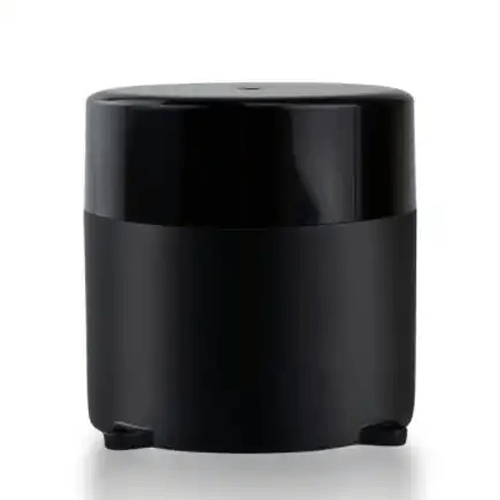

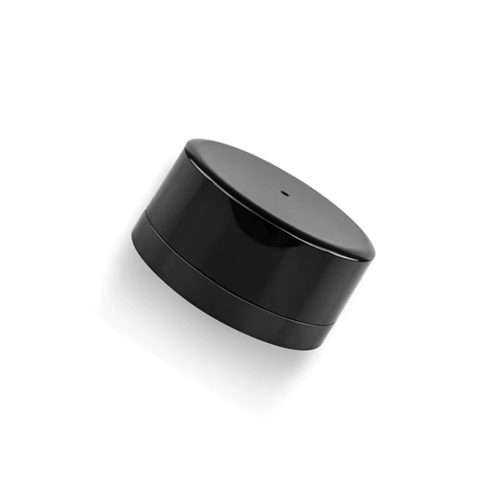

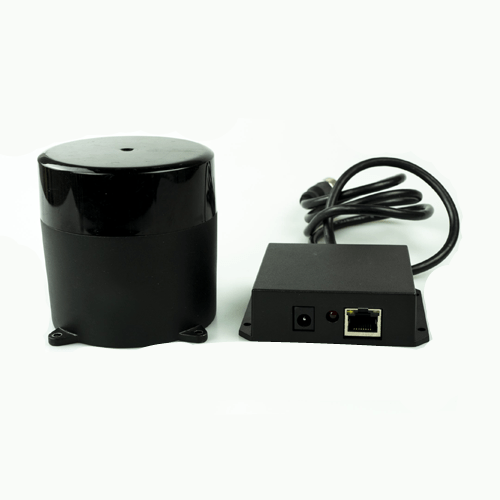

360° Photoelectric Sensor, 10m-50m Range, Class I, 5Hz-20Hz Scan Rate – Amuse Tech Solutions
This sensor has accurate distance and angle data with ±3 accuracy, supports 20000 pts/s data acquisition, and withstands shock up to 500m/sec² for 11ms.
Description
Overview

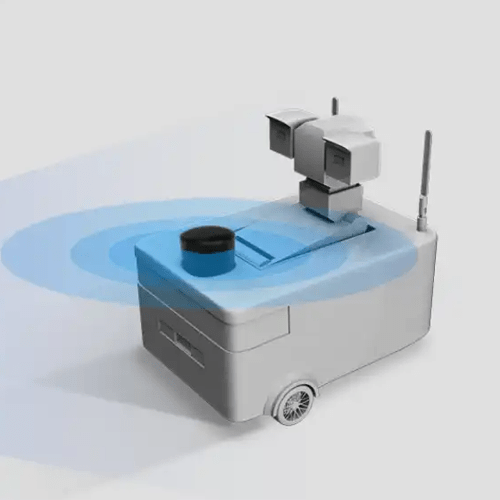

Amuse Tech Solutions obstacle avoidance lidar sensor the strong benefits are the LiDAR itself is very resistant to the shock and vibration, even leading in the market the drop of height with acceleration is until 0.08 lb (40g), much higher than the one normally requested of 0.02 lb (10g). That is highly appreciated by some applications such as autonomous driving, AGV and forklifts, which really need to avoid being damaged during the running. Loading, unloading, and transportation operations, then finally improve the safety.
Technical Specifications
| Full Scanning | 360° |
| Detection Range | 393.70 in (10m) / 1181.1 in (30m) /
1968.5 in (50m) |
| Accuracy | ±3 |
| Eye Safety | Class I |
| Output Data | Distance, Angle |
| Anti-Glare | indoor and outdoor applications |
| Scan Rate | 5Hz/10Hz/20Hz |
| Data Acquisition Rate | 20000 pts/s |
| Resolution | 5Hz:0.09°，10Hz:0.18°, 20Hz:0.36° |
| Shock | 500m/sec2, lasting 11ms |
| Vibration | 5Hz-2000Hz, 3G rms |
| Working Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
