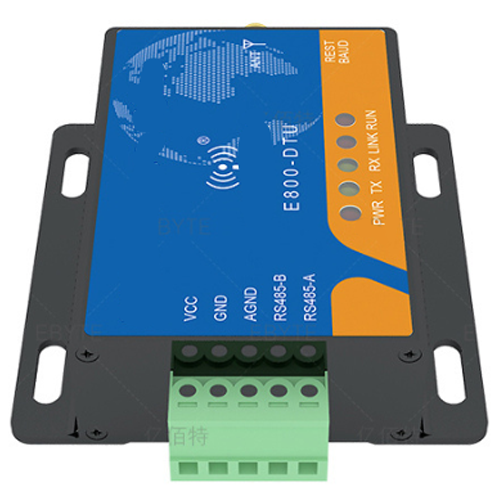

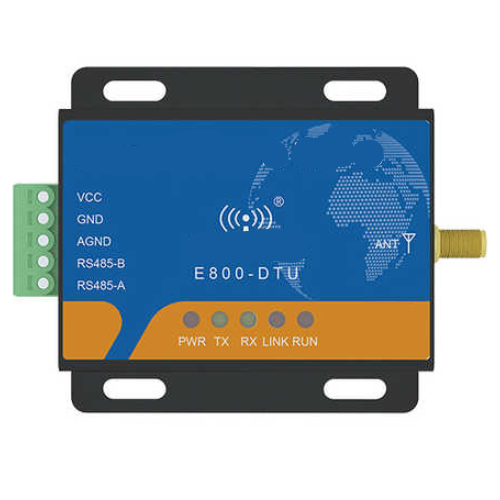

ZigBee Wireless Transceiver Gateway IoT with 8km Range – Amuse Tech Solutions
ZigBee Wireless Transceiver Gateway for IoT with 8km range, RS232 or RS485 interface, 30dBm power, ideal for long range wireless data transmission
Description
Technical Specifications
| Chipset | ZigBee |
| Application | IoT Wireless data transmission |
| Frequency | 433 MHz |
| Supply Voltage | 8V to 28V DC (Recommended: 12V or 24V) |
| Interface | RS232 & RS485 (DB9 hole , 3.81 terminal block) |
| Operation Range | 1 km to 8 km |
| Antenna Type | SMA-K |
| Power | 17 dBm to 30 dBm |
| Color | Black |
| Average Weight | 79g |
| Antenna Impedance | 50 Ω (Standard 50 Ω characteristic impedance) |
| Baud Rate | Default: 9600 bps (Adjustable from 1200 to 115200 bps) |
| Address Range | Default: 0 (Configurable up to 65536 addresses) |
| Operating Temperature | -40°F to 185°F (-40℃ to 85℃) |
