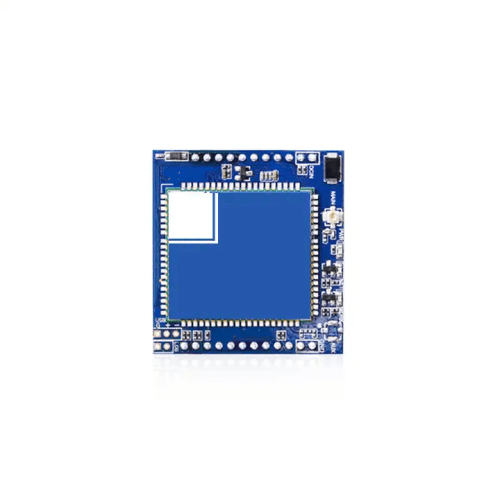

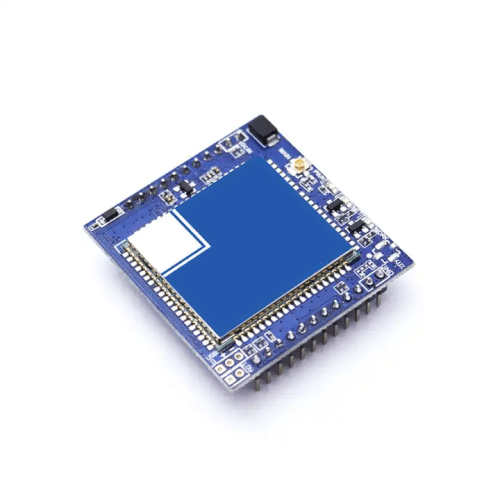

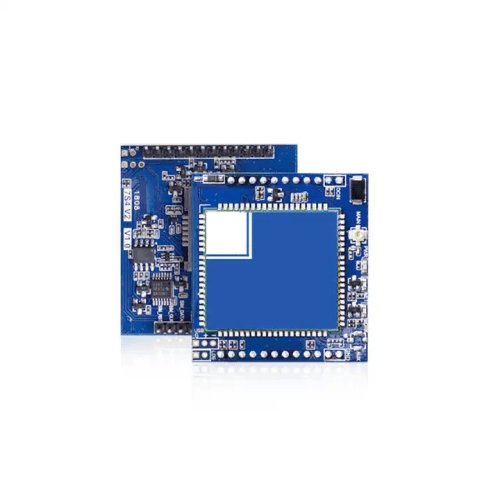

Zigbee Module Communication UART TTL Interface 4G LTE Modem MQTT Support – Amuse Tech Solutions
Upgrade your connectivity with our Zigbee module, featuring UART TTL interface, 4G LTE modem, and MQTT support for robust communication.
Description
Overview
Amuse Tech Solutions ZigBee Module is an LTE CAT 1 communication module, which supports LTE and GSM, supports TCP/UDP transparent transmission, SMS transmission and configuration, and also supports HTTP and MQTT protocol. At the same time, it supports AT instruction mode to realise full command operation and meets the needs of different application scenarios.
Features
- CAT1 LTE communication
- UART TTL interface
- 4G LTE modem
- MQTT support
- IoT compatibility
- Compact design
- Serial communication
- High data rates
- Wide temperature range
Technical Specifications
| Transmission Speed | 10 Mbps DL / 5 Mbps UL |
| Protocol | TCP / UDP / IPV4 / IPV6 / DNS / HTTP / MQTT |
| Serial Parameters | TTL (3.0 V) x 1 |
| Certifications | CE, ROSH |
| Configuration | Serial, Net, SMS AT commands |
| Power | 3.4 V 4.2 V / 516 V |
| Operating Temperature | -22 °F to 167 °F (-30 ℃ to +75 ℃) |
| Dimension | 1.74 in x 1.64 in x 0.49 in (44.4 mm x 41.8 mm x 12.5 mm) |
