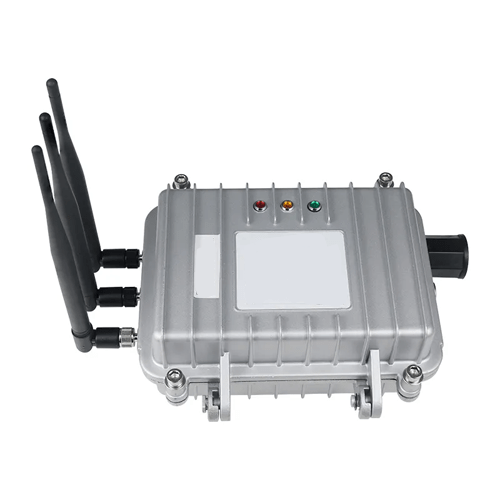

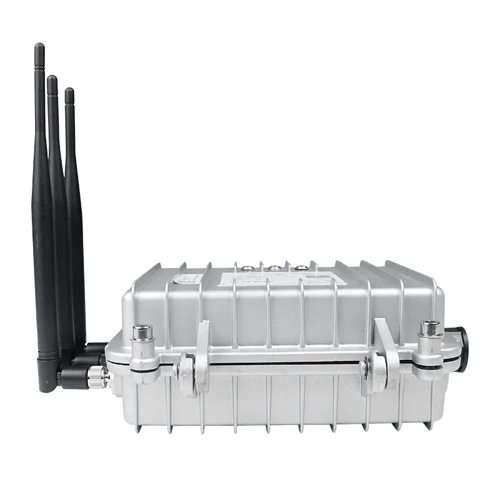

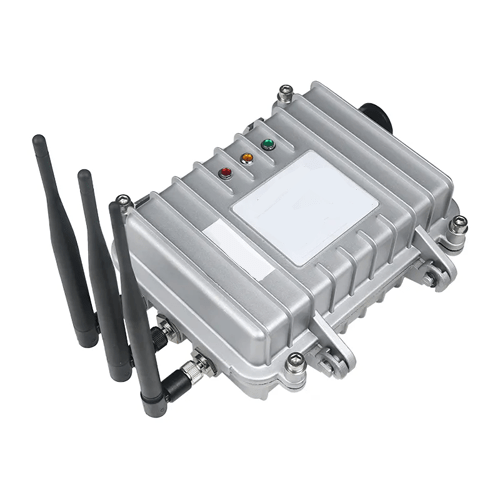

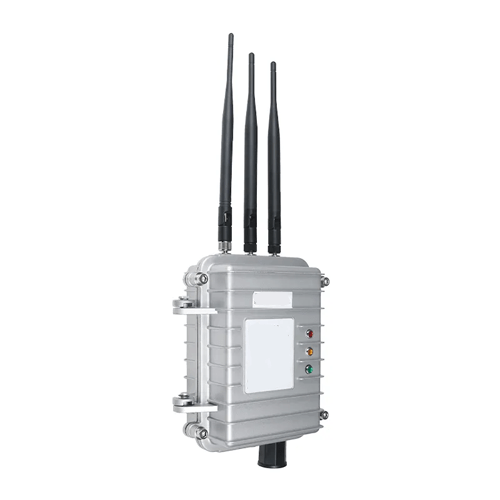

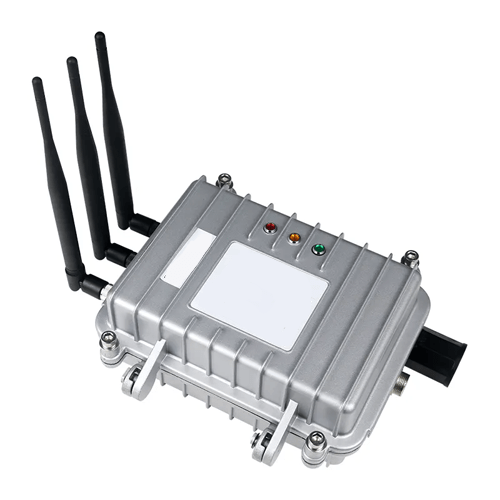

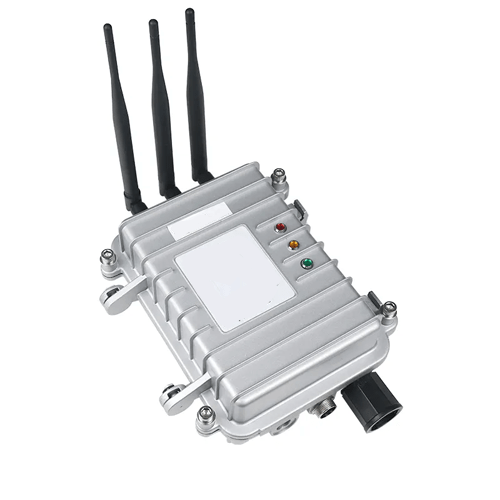

Zigbee IoT Gateway Multi-Protocol Waterproof Aluminum IP66 MT7628 OpenWrt – Amuse Tech Solutions
Zigbee IoT Gateway with multi-protocol support, waterproof aluminum IP66 enclosure, and MT7628 processor for rugged, reliable use.
Description
Overview
Amuse Tech Solutions Zigbee Iot Gateway is a tough and programmable IoT Gateway designed for the IoT Gateway Developer and provides complete protection against dust and water. So, it can be safely installed in outdoor or industrial indoor conditions. It also features Wi-Fi 2.4 G/5 G, Zigbee 3.0, Bluetooth 5.2, GPS and LTE Cat M1. Furthermore, the smart gateway allows the developers to build custom firmware from the bottom layer of the hardware with preintegrated, comprehensive, and fully documented out-of-the-box guidance and support.
Features
- Multi-Protocol gateway
- Waterproof and robust aluminum enclosure
Technical Specifications
| CPU | MT 7628 |
| Operating System | Open Wrt |
| Network Interface | WAN/LAN Variable: CAT-5/CAT-5E Supports Data POE Power Supply: 44 V to 57 V |
| LTE CAT M1 | Operation Frequency Band: 850 MHZ to 1900 MHZ |
| LTE CAT 1 | LTE FDD: B2, B4, B5, B12, B13 WCDMA: B2, B4, B5 |
| Operating Temperature | -4°F to 158°F (-20 °C to 70 °C) |
| Current | 1000 mA, 5 V |
| IP Rating | IP 66 |
| Size | 12.83 in x 12.60 in x 5.12 in (326 mm x 320 mm x 130 mm) |
| Indicator LEDs | 1) Power LED (Normally On When Powered On) 2) Network LED (Normally On When Connected) 3) Wi-Fi LED (Normally On After Connecting to Wi-Fi for 1-2 Seconds) |
| Antenna | Wi-Fi Antenna, LTE Antenna, Optional BT, Zigbee, GPS |
