Description
Overview
Amuse Tech Solutions Zigbee Ethernet Gateway offers open API (Application Programming Interface) and CPI (Communication Protocol Interface) to facilitate the flexible integration between the Energy Gateway and the third-party Cloud Server. The users can either develop their own firmware right on the Gateway device by deploying the API or integrate the Gateway with a designated Cloud Server / Mobile App following the CPI.
Features
- ZigBee HA1.2 compliant
- ZigBee coordinator of the home area network
- Powerful CPU for complicated calculation
- Mass storage capacity for historic data
- Cloud server interoperability
- Firmware upgradable via micro-USB port
- Affiliate mobile apps
Â
Technical Specifications
| WAN Protocols | IP Addressing: DHCP, Static IP Data Porting: TCP/IP, TCP, UDP
Security Modes: SSL |
| ZigBee Profile | Smart Home Automation Profile |
| Downlink Commands | Data format: JSON Gateway Operation Command
HAN Control Command |
| Uplink Messages | Data format: JSON Home Area Network information |
| CPU | MIPS Cortex-M3 |
| Flash Rom | 2 MB |

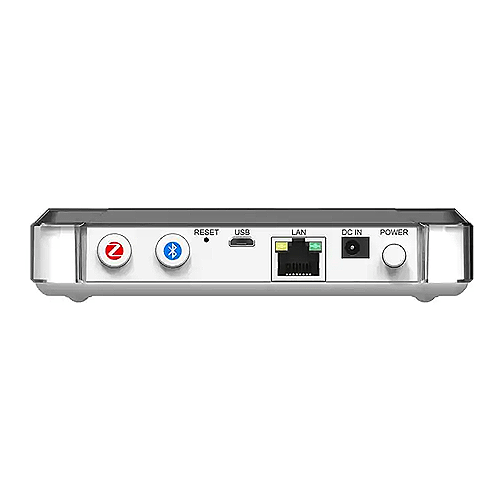

| Data Interface | Micro USB port |
| Data Storage Capacity | TBD |
| Ethernet | 100 MbpsAuto MDIX |
| RF Characteristics | Operating frequency: 2.4 GHz Internal PCB Antenna |
| Power Supply | 5 V DC Rated power consumption: 1 W |
| LEDs | Power, ZigBee, Ethernet, Bluetooth |
| Mounting Type | Direct Plug-in Plug Type: US, EU, UK, AU |
| Dimensions | 3.6 in x 5.2 in x 1.1 in (91.5 mm x 133 mm x 28.2 mm) |
