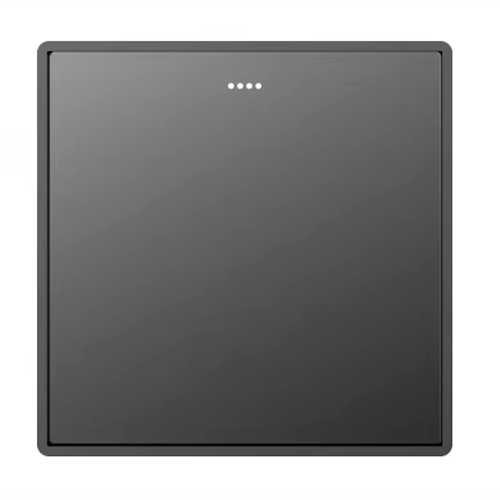

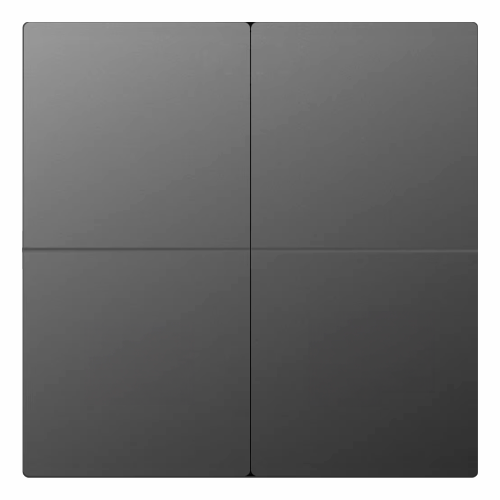

Zigbee Customizable Wireless Control Switch – Amuse Tech Solutions
ZigBee Customizable Wireless Control Switch, compatible with smart home systems like Alexa and Google Home, offering easy remote operation.
Description
Features
- ZigBee 3.0 compliant
- Work with any standard ZigBee Hub
- Trigger scenes and automate your home
- Control multiple devices at the same time
Technical Specifications
| Zigbee Profile | Zigbee 3.0 |
| Rf Characteristics | Operating Frequency: 2.4ghz |
| Range Outdoor/Indoor | 328.1 Ft Or 98.4 Ft (100m Or 30m) |
| Internal Pcb Antenna | Yes |
| Operating Voltage | 100 To250 V 50 Or 60 Hz |
| Flame Rating | V0 |
| Power Consumption | < 1w |
| Max. Load Current | 14.4 A (10a All Gangs) |
| Compatible System | 3-Wire Lighting Systems |
| Mounting Type | In-Wall Mounting |
| Cn Standard | Yes |
| Max Current | 14.4 A (10a) |
| Max Voltage | 730.4 V (250v) |
| Zigbee | 2.4ghz Ieee 802.15.4 |
| Rf Characteristics | Operating Frequency: 2.4ghz |
| Operating Environment | Indoor |
| Operating Environment Temperature | -4°F To 122°F (-20°C To +50°C) |
| Operating Environment Humidity | ≤ 90% Non-Condensing |
| In-Wall Size | 2.36 In × 2.4 In × 0.94 In (60(L) × 61(W) × 24(H) Mm) |
| Thickness of Front Panel | 0.59 In (15mm) |
| Weight | 0.32 Lbs (145g) |
| Single Package Size | 4.76 In × 3.54 In × 2.56 In (12.1 × 9 × 6.5 Cm) |
| Single Gross Weight | 0.32 Lb (0.145 Kg) |
| Dimension | 3.62 In × 3.62 In × 1.38 In (92(L) × 92(W) × 35(H) Mm) |
