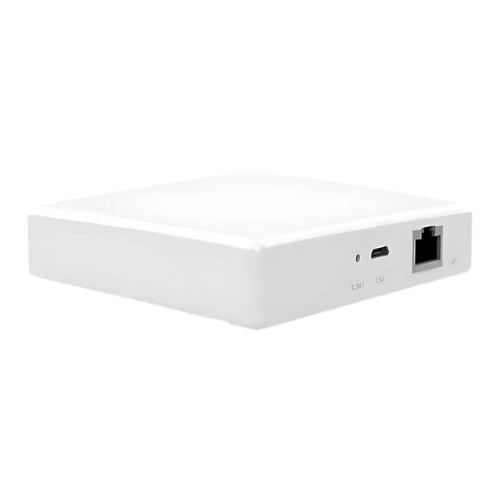

Zigbee Communicator Hub with 250kbps Theoretical Transmission – Amuse Tech Solutions
Energy-Efficient Communicator Hub achieves data rates up to 250 kbps and delivers up to 19 dBm for strong signal transmission with on-board antenna.
Description
Technical Specifications
| Communication Protocol | Zigbee 3.0 |
| Standard | IEEE 802.15.4 |
| Network Topology | Supports star, tree, mesh network |
| Working Voltage | 1.8V to 3.3V |
| Frequency | 2.4 GHz to 2.485 GHz |
| Adapter | 110V to 240V AC, 5V or 1A DC |
| Input | 220V 50Hz 0.25A |
| Theoretical Transmission Rate | 250kbps |
| Maximum Output Power | 19dBm |
| Dynamic Output Power | > 35dB |
| Open Line of Sight Transmission Distance | > 300m |
| Receive Sensitivity Typical | -102dBm, PER <10% |
| Frequency Error | ± 15ppm |
| Total Number of Channels | 16 |
| Channel Number | 11 to 26 |
| Power Adapter Option | USB Powered |
| Antenna | Default PCB on-board antenna |
| Firmware Upgrade | Support OTA |
| Humidity | 10% RH to 90% RH |
| Working Temperature | 14°F to 131°F (-10°C to 55°C) |
