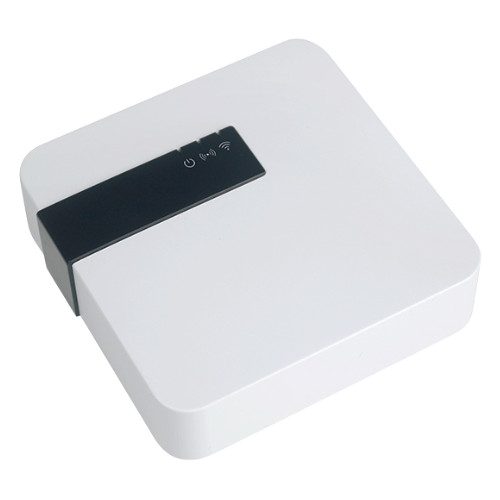

Zigbee 3.0 Smart IoT Gateway with LTE 10 or 100 Mbps Ethernet – Amuse Tech Solutions
Bluetooth 5.2 Zigbee 3.0 ESP32 Smart IoT Gateway supports Wi-Fi LTE Ethernet with flexible installation for smart healthcare or building.
Description
Features
- Supports Bluetooth 5.2, Zigbee, and Z-WAVE
- High-speed 10 or 100 Mbps Ethernet connectivity
- USB Type C power supply
- Multiple installation options available
- Wide operating temperature range
- Flexible for Smart Healthcare applications
- Designed for Building Automation use
- Compact and energy efficient design
Technical Specifications
| Category | Specifications |
| Power Supply | USB 5V Type C |
| Network Interface | WAN or LAN Available |
| Wireless Protocol | Wi-Fi, LTE, or Ethernet |
| Bluetooth or Zigbee or Z-WAVE | Choose One from Bluetooth 5.2, Zigbee 3.0, or Z-WAVE |
| Ethernet | 10 or 100 Mbps |
| SIM Card | Support |
| Installation Method | Flat, Ceiling, DIN |
| Power Adapter Input | 100V to 240V AC or 50Hz to 60Hz |
| Power Adapter Output | 5V or 2A, USB Type C |
| Indicator LEDs | Green: Power on, Red: BLE or Zigbee or Z-WAVE Signal, Blue: Wi-Fi Connected |
| Reset Button | Soft Reset, Restore Factory Settings after 5-second Press |
| Working Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
