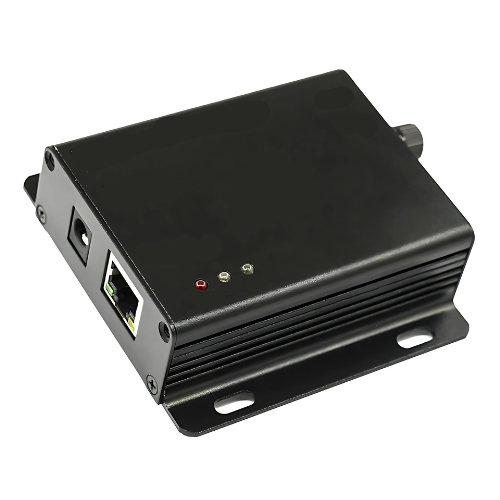

Zigbee 3.0 Gateway Power With – RJ45 Ethernet Interface Support – Amuse Tech Solutions
Zigbee 3.0 Ethernet Gateway with high power, supports up to 6 TCP connections, ideal for industrial IoT applications with web configuration and DHCP.
Description
Technical Specifications
| Supplier Type | OBM |
| Interface | RJ45 Ethernet |
| Features | High power |
| Network Protocol | IP, TCP, UDP, ARP, ICMP, IPV4 |
| IP Acquisition Method | Static IP, DHCP |
| DNS | Available |
| User Configuration | Web configuration |
| Application | Smart oil field, IoT control |
| Network Port Specifications | RJ45, 10Mbps to 100Mbps |
| Transmission Method | TCP Server, TCP Client, UDP Server, UDP Client, IoT platform |
| TCP Server Connections | Supports up to 6-way TCP connections |
| Voltage | 8V to 28V DC (12V or 24V power supply recommended) |
| Operating Temperature | -40°F to 185°F (-40℃ to 85℃) |
| Operating Humidity | 10% RH to 90% RH (non-condensing) |

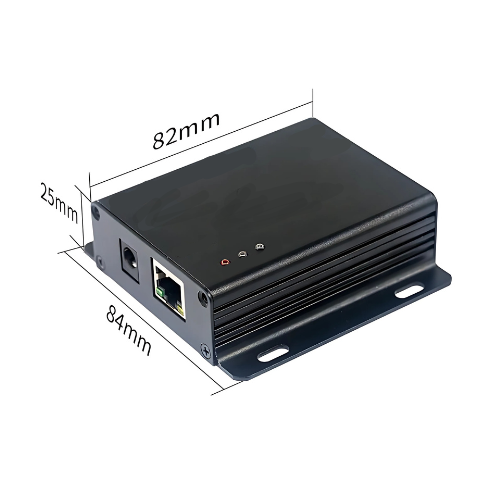

| Size | 3.31 in x 3.31 in x 0.98 in (84 mm x 84 mm x 25 mm) |
| Weight | 4.44 ounces (125.8 g) |
