Description
Overview

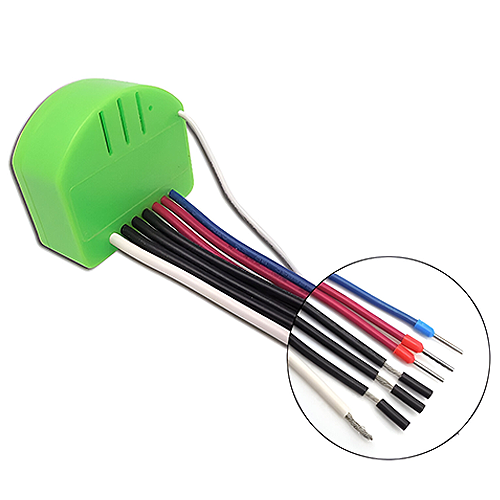

Amuse Tech Solutions’s Z-Wave smart lighting control module with relay function is designed to operate in a wall switch box or in locations where the control of an electric device is needed. It is also possible to send a signal to any system that is to be integrated with the Z-wave system. Every main powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-spots”.
Features
- Work with existing light switches
- Neutral wire required
- Slim size module with built in Z-Wave technology
- Acts as a Z-Wave repeater to extend the range
- On or Off control via Z-Wave controller, manual wall switch
Technical Specifications
| Z-Wave Frequency | 868.42 MHz or 865.2 MHz or 908.42 MHz or 921.42 MHz or 869.0 MHz |
| Operating Voltage | 230 V AC or 60 Hz 120 V AC or 50 Hz |
| Maximum Load | 3000 W |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Range | 98.42 ft (30 m) line of sight |
| Cable Length | 5.91 in (150 mm) |
| Net Weight | 1.05 oz (30 g) |
| Size | 0.27 in x 0.67 in x 1.44 in (41.9 mm x 16.9 mm x 36.7 mm) |
