Z Wave Smart Gas and Water Shut Off Valve with Bypass Function – Amuse Tech Solutions
Smart Z-Wave gas and water shut-off valve with electric driving, bypass function, and remote control capabilities for safety and automation.
Description
Overview

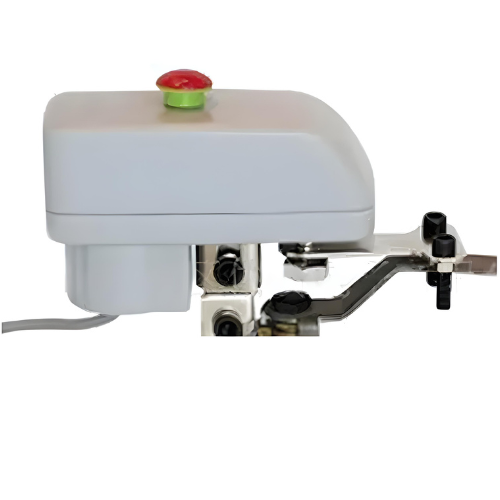

Amuse Tech Solutions Z-Wave smart gas and water shut-off valve with bypass function is no power consumption, energy saving and high safety. When the gas concentration achieves the threshold, the alarm provides a signal to mechanical valve automatically turn-off the gas, guarantees security with manual shut off and reset button. Directly installs on the ball valve. Unnecessary to cut off the gas pipeline, the installment is convenient.
Features
- Gas or water shut off valve
- Bypass Valve function
- Alarm integration
Technical Specifications
| Connection Form | Flange |
| Nominal Pressure | 22.07 lb·in (30 kg.cm) |
| Structure | Fixed ball valve |
| Range | Min 98.42 ft (30 m) line of sight |
| Material | Plastics and Alloy |
| Driving Mode | Electric |
| Channel | Straight through type |
| Power Supply | AC to DC power supply 12 V DC |
| Z-Wave Frequency | 868.4 MHz or 865.2 MHz or 869.2 MHz or 908.4 MHz or 921 MHz |
| Working Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Net Weight | 14.11 oz (400 g) |
| Size | 4.17 to 5.51 in x 4.33 in x 2.44 in (106 to 140 mm x 110 mm x 62 mm) |
