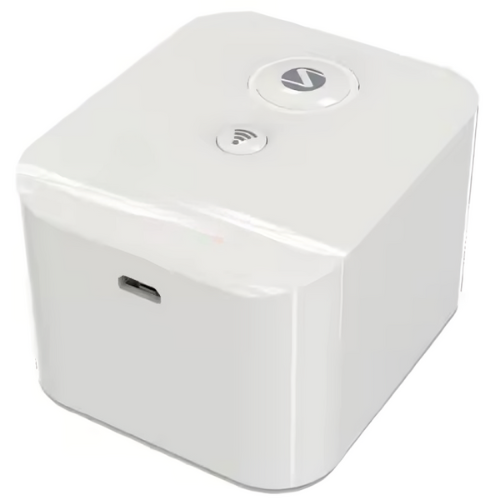

Wireless ZigBee Gateway with 2.4GHz & Cloud Integration – Amuse Tech Solutions
Wireless smart gateway hub with cloud-to-cloud integration, ZigBee 2.4GHz, 100m range, micro-USB, 8G TF card storage, and secure mobile app authentication.
Description
Technical Specifications
| Specification | Details (Converted Values) |
| Material | PC |
| CPU | ARM Cortex-M3 |
| Flash ROM | 2M |
| Data Interface | Micro USB port |
| Data Storage Capacity | TF Card: 8G |
| Wireless Connectivity | ZigBee 2.4GHz IEEE 802.15.4, Wi-Fi |
| RF Characteristics | Operating frequency: 2.4GHz, Internal PCB Antenna |
| Range outdoor or indoor | 328 ft or 98 ft |
| Power Supply | AC 100 to 240V, 50 to 60Hz, Rated power consumption: 1W |
| LEDs | Power, ZigBee |
| Mounting Type | Direct Plug-in |
| Plug Type | US, EU, UK, AU |
| WAN Protocols | IP Addressing: DHCP, Static IP, Data Porting: TCP or IP, TCP, UDP |
| Security Modes | WEP, WPA or WPA2 |
| ZigBee Profile | Home Automation Profile (optional), Smart Energy Profile (optional) |
| Downlink Commands | Data format: JSON, Gateway Operation Command, HAN Control Command |
| Uplink Messages | Data format: JSON, Home Area Network information, Smart meter data |
| Security | Password protection on mobile apps, Server or gateway interface authentication |
| ZigBee Security | Preconfigured Link Key, Certicom Implicit Certificate Authentication, Certificate-Based Key Exchange (CBKE), Elliptic Curve Cryptography (ECC) |
| Dimensions | 2.6 Inch X 2.2 Inch X 1.4 Inch (66.04 mm X 55.88 mm X 35.56 mm) |
| Weight | 0.23 lb (0.104 kg) |
