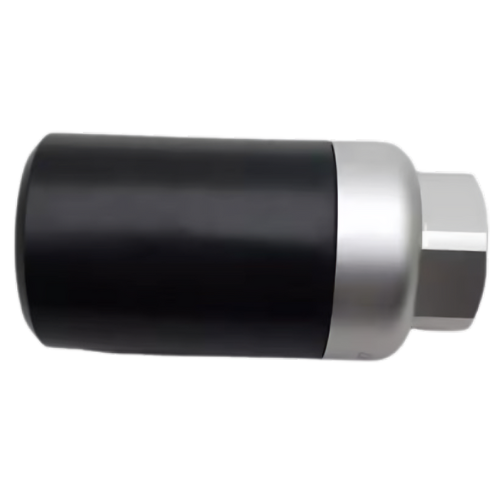

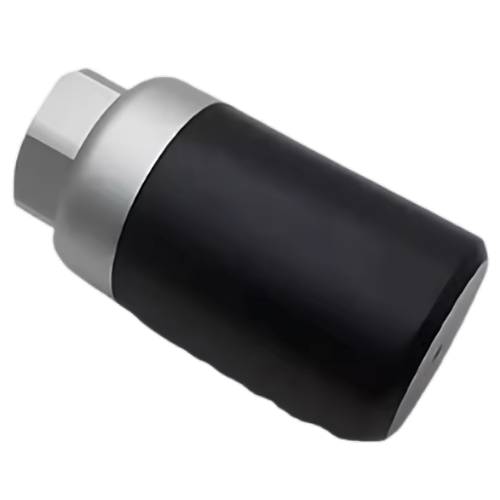

Wireless Temperature Vibration Sensor with Bluetooth LoRaWAN – Amuse Tech Solutions
Wireless temperature and vibration sensor with Bluetooth 5.0 and LoRaWAN technology for industrial equipment maintenance and improving reliability.
Description
Features
- Wireless temperature vibration monitor
- Maintenance decisions based on monitoring data
- High-Precision
- Monitor class C mechanical equipment
- Mobile app collection
Technical Specifications
| Mounting Type | Thread |
| Corrosion Resistance | Stainless Steel Body, Dissolution-Resistant PC Material |
| Anti-Fall | 3 ft (1 m) drop to concrete |
| Number of Axles | 3 Axis |
| Perceived Unit | MEMS |
| Range of Amplitude | ± 16 g peak |
| Certainty of Measurement | ± 5% (160 Hz) 3-axis |
| Acceleration Frequency Range | X and Z: 5 Hz (± 3 dB) to 3.6 kHz (± 3 dB) Y: 5 Hz (± 3 dB) to 1.4 kHz (± 3 dB) |
| Measurement Interval | 20 min indicator |
| Temperature Accuracy | (1 °C) |
| Bluetooth Specification | Bluetooth 5.0 |
| Bluetooth Frequency Band | 2.4 GHz ISM Band 2.4 GHz to 2.483 GHz |
| Bluetooth Power | 2 dBm |
| Lora | 470 MHz to 510 MHz and AS 923 MHz |
| Battery Model | Replaceable C-size 3.6 V Disposable Lithium-ion Batteries |
| Battery Life Span | Working for 3 years by the Default Configuration Definition |
| Measuring Range | – 40 °F to 248 °F (- 40 °C to 120 °C) |
| Working Temperature | – 40 °F to 165 °F (- 40 °C to 60 °C) |
| Weight | 6.56 oz (186 g) (including battery) |
| Dimension | Height: 3.3 in (85 mm), Diameter: 1.3 in (34 mm) |
