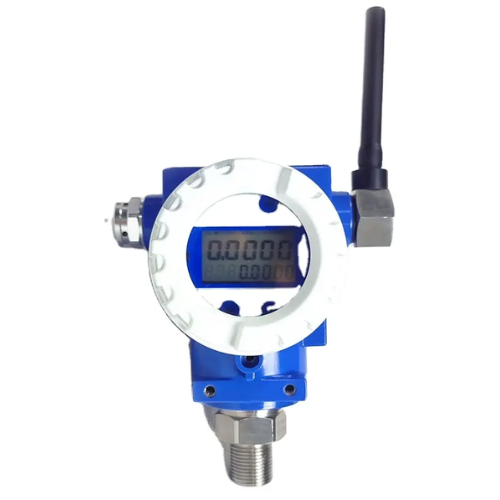

Wireless Rugged Pressure Sensor with LoRaWAN – Amuse Tech Solutions
Explore Precise and Efficient Pressure Monitoring with Low Power Consumption, Long Battery Life, and Wireless Connectivity for Industrial Needs.
Description
 Technical Specifications
| Pressure range | Gauge: -14.5 psi to 37,709 psi (-100 kPa to 260 MPa) Absolute: 0 to 23.2 psi (0 to 160 kPa) Differential: 0 to 507.6 psi (0 to 3.5 MPa) |
| Accuracy | 0.25% or 0.5% |
| Power supply | Built-in 3.6 V lithium battery |
| Standby power | Less than 0.03 mA |
| Battery life | Wireless On: 1 to 2 years Wireless Off: 2 to 5 years |
| Frequency | 430 MHz or 470 MHz |
| Transmission distance | 3,281 ft (1,000 m) (open area) |
| Data transmission | Delayed transmission adjustable between 1 to 255 seconds |
| Explosion levels | Exd II CT6 (optional) |
| Working environment humidity | Less than 90% |
| Process connection | M20 × 1.5 or 1/2 NPT |
| Protection | IP65 |
| Wetted parts | Stainless steel 316L |
| Working environment temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Dimension | 4.53 in × 9.25 in × 4.33 in (11.5 cm × 23.5 cm × 11 cm) |
