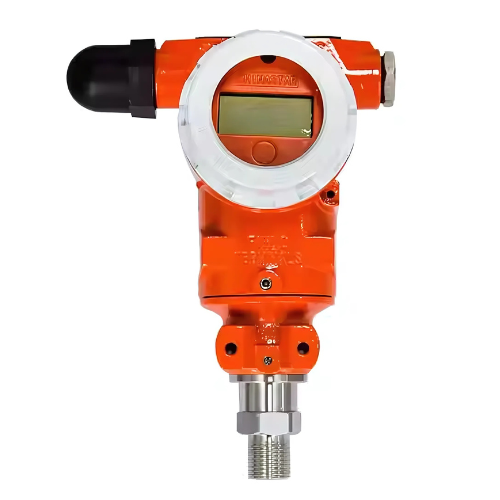

Wireless Pressure and Temperature Monitoring Device with LCD – Amuse Tech Solutions
Low-Power Sensor, LCD Display, IP65 Rated. Ideal for Water, Gas, Fuel, and Liquid Monitoring with 2-year Battery Life and NB-IoT Connectivity.
Description
Technical Specifications
| Customized Support | OEM, ODM | |
| Material | SS, Aluminum Alloy | |
| Accuracy | ±0.5% FS | |
| Communication Protocol | NB-IOT, LoRaWAN | |
| Power Supply | 3.6 V Lithium Battery Power Supply | |
| Battery Life | >2 Years, 3.6 V Lithium Battery Power Supply, ER26500 (9AH) | |
| Pressure Range | 0 psi to 2175.57 psi(0 MPa to 15 MPa) (optional) | |
| Pressure Accuracy | ±0.5% FS (Customizable) | |
| Working Voltage | B1/B3/B5/B8/B20 | NB-IoT |
| 433 Mhz/470 Mhz/868 Mhz/915 Mhz/923 Mhz | LoRaWAN | |
| Antenna | Rod Antenna | |
| Working Voltage | 3.3 V to 3.6 V DC | |
| Max Working Current | <300 mA | |
| Sampling Interval | 10 Min, Configurable | |
| Pressure Connection | G1 or 2, Customizable | |
| Ingress Protection | IP65 | |
| Explosion Proof | ExdIIBT5 Gb (Evidence Collection as Required) | |
| Temperature Range | -58 °F to 302 °F (-50 °C to 150 °C) | |
| Temperature Accuracy | ±34.7 °F (±1.5 °C) | |
| Ambient Temperature | -4 °F to 185 °F (-20 °C to 85 °C) | |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) | |
| Housing Dimension (L×W×H) | 6.1 in × 5.07 in × 7.87 in (15.5 cm × 12.9 cm × 20 cm) | |
